05-16 FORD F250/F350 2.5-3" STAGE 3 COILOVER CONVERSION SYSTEM - K63103

128305
Suspension Kit
K63103
$3,779.84
Snap Logo Lease for as low as $/week Learn More
ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2016 F-250 and F-350 trucks. The...

05-16 FORD F250/F350 2.5-3" STAGE 3 COILOVER CONVERSION SYSTEM - K63103

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2016 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Rear 2.5 Aluminum Series piggyback shocks feature one-piece impact extruded aluminum cylinders that offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.

FEATURES & BENEFITS

  • FK Rod End bearings for extended longevity and minimal deflection
  • Bolt-in system fits in OE coil bucket location
  • Ride height adjustable coilovers (2.5-3")
  • Decreased body roll and improved on and off-road ride dynamics
  • Vehicle-specific shock valving provides unparalleled ride quality and control
  • Shocks are fully rebuildable and revalveable
  • Coilover conversion allows for addition of secondary shock
  • Corrosion resistant CAD plated coilover shock body with 7/8" shaft
  • Rear shocks feature anodized, one-piece impact extruded aluminum shock bodies
  • Eibach coil springs guaranteed for life against sagging or breakage

TECH INFO:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.00” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • APPLICATION NOTE #88: REMOVAL OF THE COIL CENTERING CUP IN FACTORY COIL BUCKET REQUIRED FOR INSTALLATION.
  • TECH NOTE: 2005-2016 F-250s require 4” rear blocks with 15” U-bolt kit to sit level with 2.5” lifted front. ICON block kit part # 194275 and U-bolt kit part # 37003 (2005-2010 models) or part # 67003 (2011-2016 models) are recommended.
  • Ships in multiple boxes

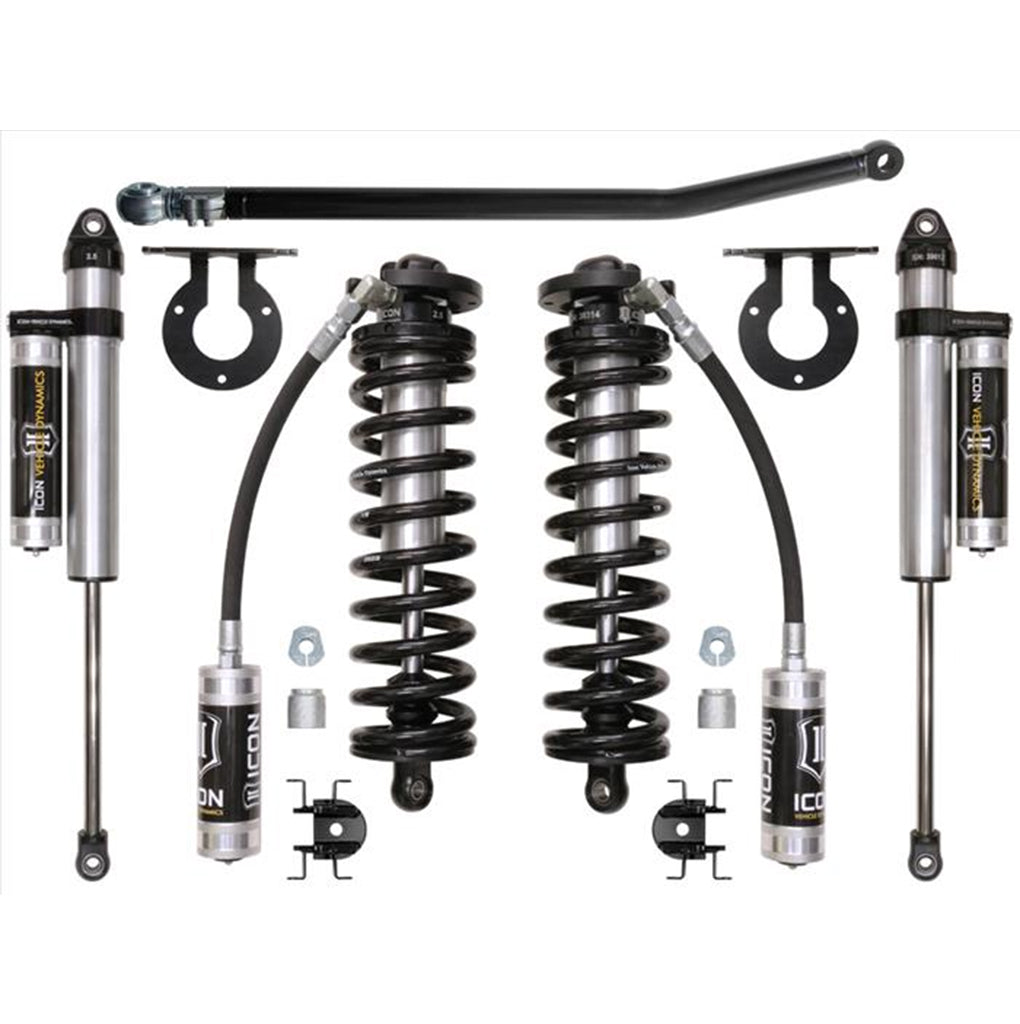

SYSTEM COMPONENTS:

  • 61720 (QTY: 1) | 05-UP FSD 4WD 2.5-3" 2.5 VS RR BOLT IN CO CONVERSION KIT
  • 64035 (QTY: 1) | 05-16 FSD ADJ TRACK BAR W/FK ROD END
  • 37705P (QTY: 1) | 99-UP FSD 0-3" REAR 2.5 VS PB PAIR

DOWNLOAD INSTALLATION GUIDE
