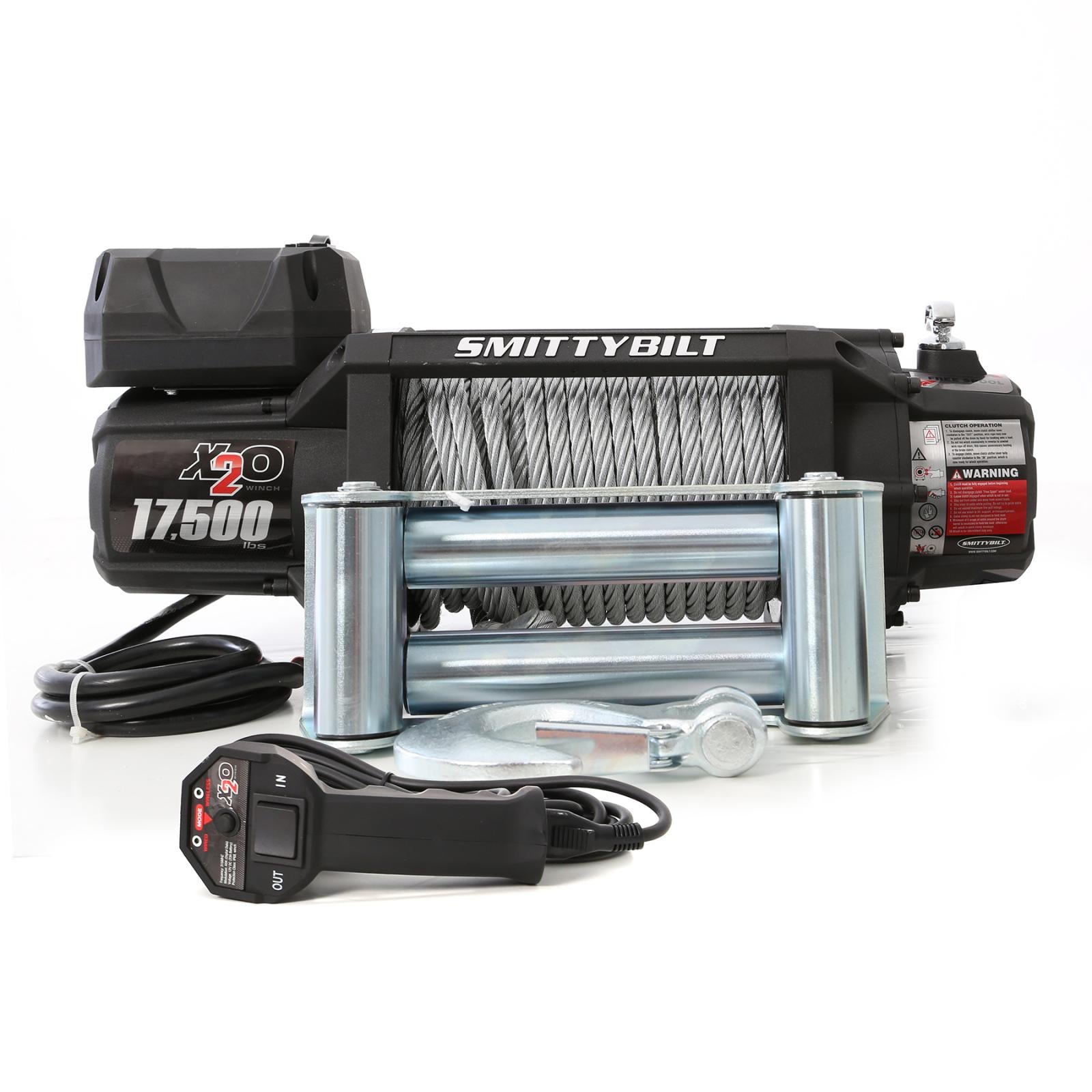

X2O 17.5 Gen2 17,500 lb Winch Water Proof Smittybilt - 97517


customers are viewing this product

Features and Benefits:

  • Waterproofing: IP68 Rating
  • Rated Line Pull: 15,500Lbs (7,045kgs) Single Line
  • Motor: 6.6hp Series Wound
  • Control: Remote Switch, 12’ (3.7m) lead
  • Gear Train: 3-Stage Planetary
  • Gear Ratio: 430:1
  • Clutch: Sliding Ring Gear
  • Brake: Automatic Out-Of-Drum
  • Drum Size: Diameter 3.45”
  • Cable: 98.5’ 3/8” Diameter
  • Fairlead: 4-Way Roller
  • Remote Control: Included
  • Integrated Wireless Remote
  • Recommended Battery: 650CCA Minimum for Winching
  • Battery Leads: 25mm2, 72”(1.83m)1
  • Finish: Textured Black
  • Weight: 150.0Lbs (45.0Kgs)
  • Mounting Bolt Pattern: 10.0” x 4.50”
  • Overall Dimensions: (L x W x H) 22.3” x 7.5” x 10.7”

*Your vehicle will require a winch-specific mounting plate or integrated bumper to install this winch onto.

This brand-new X20 Winch from Smittybilt is the perfect choice if you're looking for superior performance and a trouble-free operation! It features a Series Wound 6.6HP motor and 3-stage Planetary Gear System, which makes it an ideal bumper accessory for your off-road vehicle. Your new winch is waterproof and includes a wireless controller that can be plugged-in or used remotely, giving you more freedom and increased function. Smittybilt designed their X20 winches with optimized gear rations for fast line speeds, making it the perfect choice for use on trails.
