Important Notes:
Description:

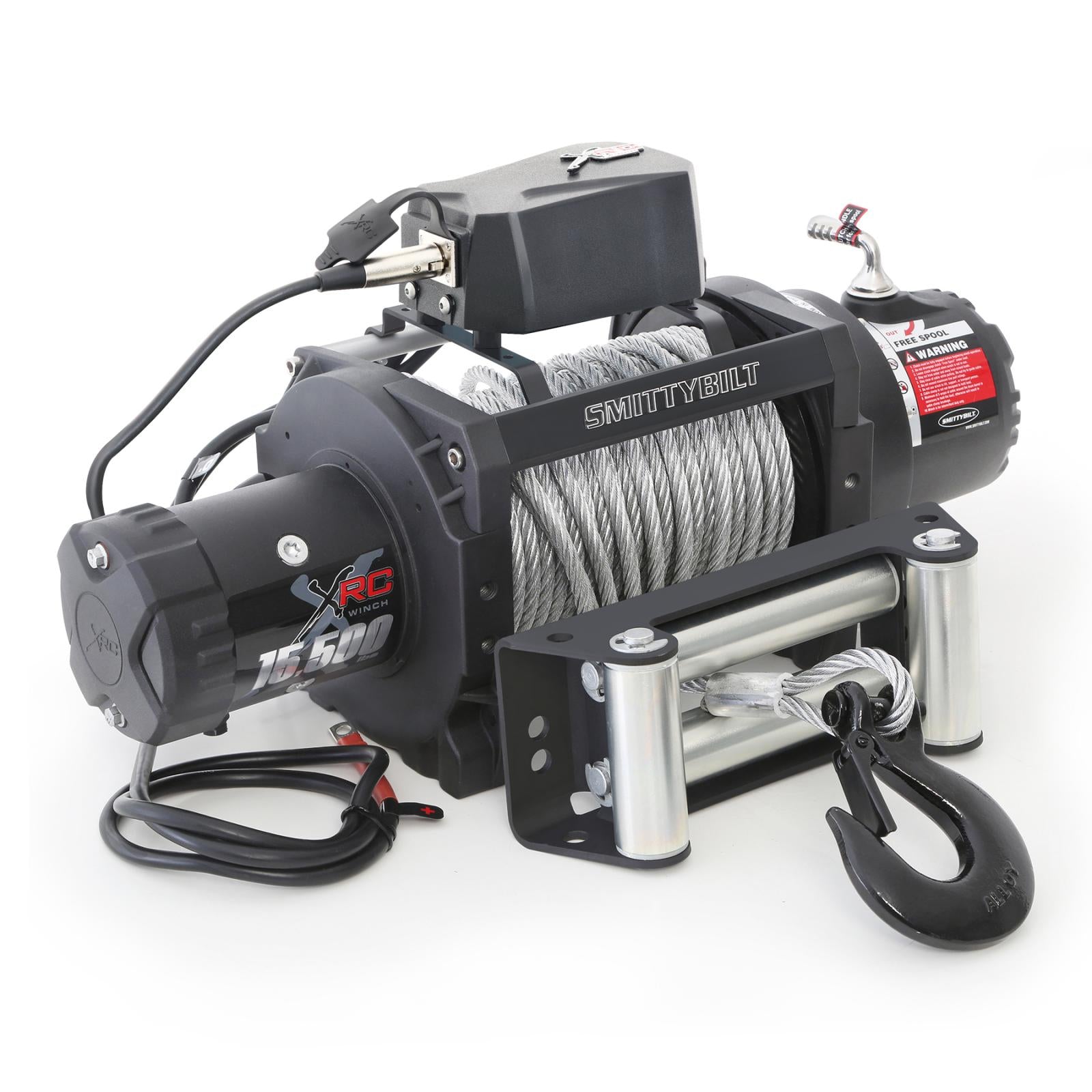

This Smittybilt XRC-15.5 Gen2 Waterproof Winch has been enhanced for increased performance and trouble free operation. It features a Series Wound 6.6 HP motor that is completely sealed, a 3-Stage Planetary Gear System and a completely waterproof 500 AMP solenoid pack that can be mounted in 2 different locations, depending on your application needs. Also included is a new controller that can be wired to the winch or unplugged for trouble-free wireless operation. Optimized gear ratios that deliver lightning-fast line speeds and the Smittybilt Lifetime Warranty provide peace of mind as well as unparalleled performance. With all of these features, you can count on the X2O winch to be there every time, in every situation.
Product Details:
- Waterproofing: IP67 Rating
- Rated Line Pull: 15,500 lbs. (7,045kgs) Single Line
- Motor: 6.6hp Series Wound
- Control: Remote Switch, 12' (3.7m) lead
- Gear Train: 3-Stage Planetary
- Gear Ratio: 397:1
- Clutch: Sliding Ring Gear
- Brake: Automatic Out-Of-Drum
- Drum Size: Diameter 3.45"
- Cable Type: Braided Steel Wire Rope
- Rope Size: 93.5' x 25/64"
- Fairlead: 4 Way Roller
- Remote Control: Wired Magnetic
- Recommended Battery: 650CCA minimum for winching
- Battery Leads: 25mm2, 72"(1.83m)
- Finish: Textured Black
- Weight: 124.0 lbs. (56.5Kgs)
- Mounting Bolt Pattern: 10.0" x 4.50"
- Overall Dimensions: 23.5"x8.4"x10.7" (L x W x H)
- Mechanical Warranty: Lifetime
- Electrical Warranty: 3 years
Parts Included:
- (1) Smittybilt XRC-15.5 Gen2 Waterproof Winch - 15,500 lbs.
- (1) 93.5' x 25/64" Synthetic Rope
- (1) 4 Way Roller Fairlead
- (1) Forged Hook
- (1) Wired Magnetic Remote Control
