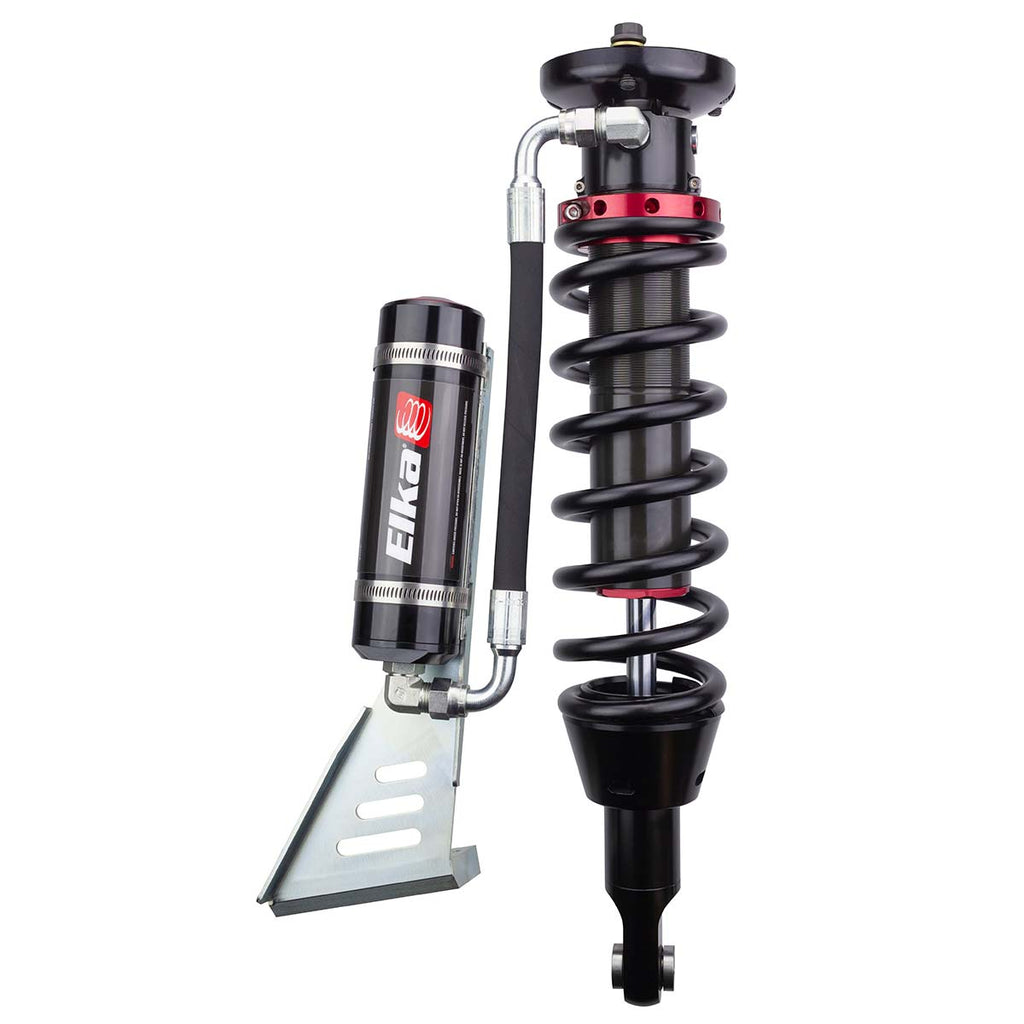

03-09 4Runner Elka 2.5 RESERVOIR FRONT SHOCKS 90158
Click to zoom in

03-09 4Runner Elka 2.5 RESERVOIR FRONT SHOCKS 90158

03-09 4Runner Elka 2.5 RESERVOIR FRONT SHOCKS (Lift Kit) - 90158Increase the off-road capabilities while improving the comfort and handling of your 4Runner The 2.5 RESERVOIR...
90158
Front Shocks
90158
$1,979.99
Snap Logo Lease for as low as $/week Learn More

03-09 4Runner Elka 2.5 RESERVOIR FRONT SHOCKS 90158

03-09 4Runner Elka 2.5 RESERVOIR FRONT SHOCKS (Lift Kit) - 90158


Increase the off-road capabilities while improving the comfort and handling of your 4Runner

The 2.5 RESERVOIR shocks provide the optimal combination of:
  • Firm and stable handling for driving on desert and fire roads (sports car feeling);
  • Plush compliance while off-road driving over washboard;
  • Strong ramping effect for extra bottom-out protection over large dips and washes;
  • Maximum articulation and traction for rock climbing.
BENEFITS
  • High-performance off-road capabilities
  • Improved handling and comfort for casual driving
  • Better traction
  • Provides leveling capabilities for better weight distribution
  • Increased protection against bottoming-out
RIDE ENHANCEMENTS
  • Spring setup optimized for each setup
  • Better attenuation of vibration, leading to major noise reduction in the cabin (much less squeak and rattle)
  • Damping characteristics optimized for each truck and setup, providing a smoother ride
  • Increased comfort in both on road and off-road conditions, especially over washboard and square-edge impacts
  • More stable and more predictable handling
  • Reduced front-end diving when cornering or braking
  • Reduced rear-end bucking and lifting
  • Increased damping and spring rate for better handling when towing or loading truck
TECHNICAL FEATURES
  • Massive 2.5 in. (56mm) hard-anodized aluminum body for cooler operation
  • Big bore design with less restricted oil flow for increased responsiveness and less fading
  • Internal hydraulic valving optimized for each vehicle platform
  • Built from CNC-machined and forged aluminum parts, aluminum bodies and premium-quality internal components
  • External remote reservoir with low-friction floating piston (1:1 ratio vs. main piston) providing additional cooling
  • DOT high-flow reservoir hose
  • Heavy-duty 3/4 in. (19mm) induction-hardened shaft
  • Triple sealing system with dust wiper, high-pressure step-seal and premium quality o-ring
  • Direct, bolt-on replacement that uses stock shocks location
  • Proprietary ultra-low friction, light viscosity semi-synthetic oil blend, ultra-resistant to high operating temperature
  • Coilover models use Elka's durable high-tensile alloy springs or Eibach springs (depending on model & configuration)
  • Fully rebuildable using affordable replacements parts and springs, multiple replacement valving shim stacks available

Vehicle: TOYOTA 4RUNNER, 2003 to 2009
Position: FRONT
Model: 2.5 RESERVOIR
Shock Type: COILOVER
Reservoir Configuration: REMOTE
Height: (Lift Kit)
Lift Range: 2 in. to 3 in. lift
Adjustments: Preload
Elka Part Number: 90158
