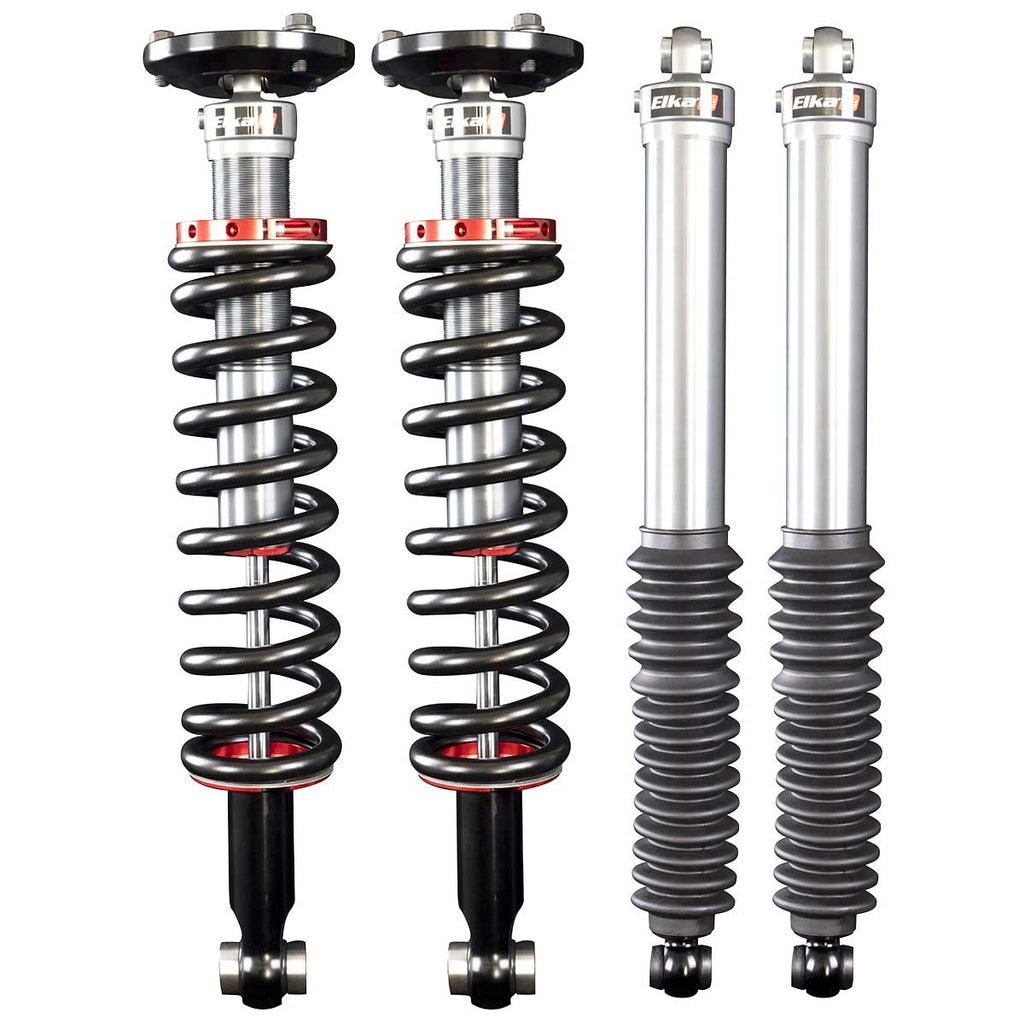

14-19 F150 Elka 2.0 IFP FRONT & REAR SHOCKS KIT (OEM Height) - 90176
Increase the off-road capabilities while improving the comfort and handling of your F-150
The 2.0 IFP shocks provide the optimal combination of:
- Firm and stable handling for driving on desert and fire roads (sports car feeling);
- Plush compliance while off-road driving over washboard;
- Strong ramping effect for extra bottom-out protection over large dips and washes;
- Maximum articulation and traction for rock climbing.
BENEFITS
- High-performance off-road capabilities
- Improved handling and comfort for casual driving
- Better traction
- Provides leveling capabilities for better weight distribution
- Increased protection against bottoming-out
RIDE ENHANCEMENTS
- Spring setup optimized for each setup
- Better attenuation of vibration, leading to major noise reduction in the cabin (much less squeak and rattle)
- Damping characteristics optimized for each truck and setup, providing a smoother ride
- Increased comfort in both on road and off-road conditions, especially over washboard and square-edge impacts
- More stable and more predictable handling
- Reduced front-end diving when cornering or braking
- Reduced rear-end bucking and lifting
- Increased damping and spring rate for better handling when towing or loading truck
TECHNICAL FEATURES
- Strong 2.0 in. (46mm) hard-anodized aluminum body for cooler operation
- Gas-pressurized design with internal floating piston to prevent cavitation and fading
-
- Internal hydraulic valving optimized for each vehicle platform
- Built from CNC-machined and forged aluminum parts, aluminum bodies and premium-quality internal components
- Heavy-duty 5/8 in. (16mm) induction-hardened shaft
- Triple sealing system with dust wiper, high-pressure step-seal and premium quality o-ring
- Direct, bolt-on replacement that uses stock shocks location
- Proprietary ultra-low friction, light viscosity semi-synthetic oil blend, ultra-resistant to high operating temperature
- Coilover models use Elka's durable high-tensile alloy springs or Eibach springs (depending on model & configuration)
- Fully rebuildable using affordable replacements parts and springs, multiple replacement valving shim stacks available
Vehicle: FORD F-150 4x4, 2014 to 2019
Position: FRONT & REAR KIT
Model: 2.0 IFP
Shock Type: COILOVER (FR) + NON-COILOVER (RR)
Reservoir Configuration: INT. FLOAT. PISTON
Height: (OEM Height)
Lift Range: 0 in. to 2 in. lift
Adjustments: Preload (front only)
Elka Part Number: 90176
