2019-2022 Dodge / Ram 1500 Truck 4WD w/o Air 2.5" Performance Elite Coilover Lift Kit - 1664FPE

134992
In stock
Suspension Component
1664F
$4,461.43
Snap Logo Lease for as low as $/week Learn More
BDS Suspension ups the anty on the RAM 1500 performance with 2" coilover systems.

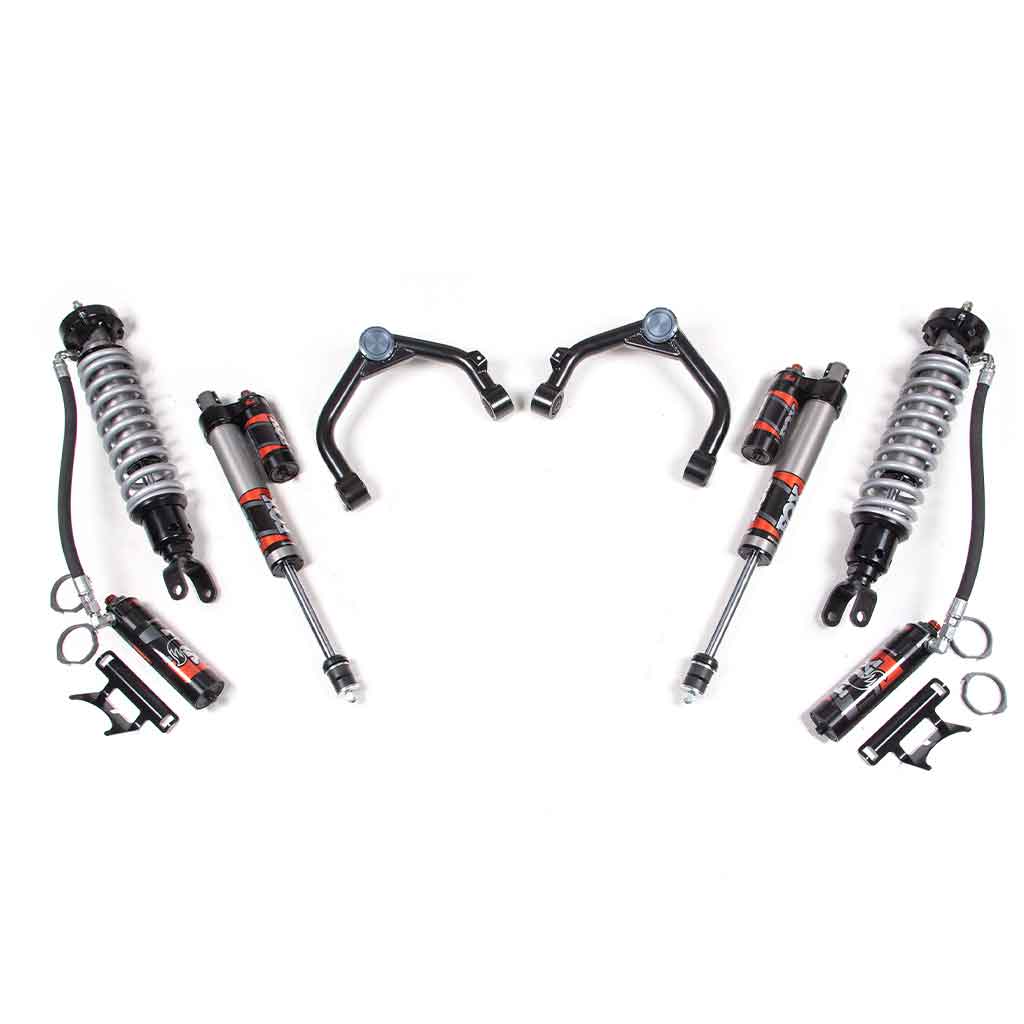

2019-2022 Dodge / Ram 1500 Truck 4WD w/o Air 2.5" Performance Elite Coilover Lift Kit - 1664FPE

Designed to be so much more than just a "leveling kit", these new coilover systems take advantage of the factory suspension geometry without overextending operating angles and offer next level performance in a smaller lift package. At the heart of these 2" systems are a pair of precision tuned FOX 2.5 performance elite series coilovers engineered to outperform on and offroad as they soak up the terrain. These coilovers are preset for the correct lift height right out of the box to provide optimal performance and direct bolt-in replacement for the factory strut assemblies. They feature a smooth bore and honed seamless aluminum body for better heat dispersion, 7/8" hardened steel carbon shaft, Eibach coil springs and black anodized machined 6061-T6 billet aluminum mounts along with remove reservoirs optional DSC (dual speed compression) adjustment technology built in. DSC allows for easy adjustment of the vehicle's suspension compression dampening so you can dial in the ideal ride performance to soak up the bumps, both large and small. The DSC has 12 adjustment points for the high speed compression as well as 10 adjustment points for the low speed compression allowing you to make large or small changes to further improve your performance. Adjustments can be made by simply twisting the knobs located on the end of the reservoir. No tools or shop adjustments needed, allowing you to tune the suspension out on the trail. A pair of reservoir mounting brackets are supplied to position the reservoirs. Complimenting the coilovers are a pair of performance upper control arms (UCAs) designed for improved strength and suspension travel. Built from thick wall 1.5" DOM tubing, these UCAs utilize an indexed ball joint cup to reposition the upper ball joints and allowing more droop travel. These arms come fully assembled right out of the box with high quality greaseable ball joints and rubber bushings for long life, quiet operation and superior corrosion resistance over uniballs and heims.

Out back these 2" systems retain the OE springs for with a level stance while improving damper performance to pair with the front. Your choice of rear FOX 2.0 Performance Series IFP gas shocks or upgrade FOX 2.5 Performance Elite Series DSC reservoir shocks are offered to match the front for next level performance and easy tuning to meet the demands out on the trail. As with all BDS kits these come ready to install right out the box with all hardware packs and step-by-step installation instructions.

Improve the look and capability of your RAM 1500 truck with this 2" Coilover System from BDS Suspension.

    • Tire & Wheel Combinations
    • 295/65r w/20x9 and 5" back spacing
    • 33x12.50 w/20x9 and 4.5" back spacing

*Trimming may be required*

  • Est. Installation: 3 hours
  • Difficulty Level (easy 1 - 5 complicated): 2

Kit Components

Qty Part# Description
1 122253 2006-2022 Ram 1500 UCA Kit - 2-3" Lift H
1 88402242 X - Kit: BDS 19-20 Ram 1500 Front Coilov
2 98224700 Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
