2005-2020 Toyota Tacoma 4WD 4" Lift Kit - 816H

Ready for Your Next Adventure
816H
Lift Kits
816H
$2,037.53
Snap Logo Lease for as low as $/week Learn More

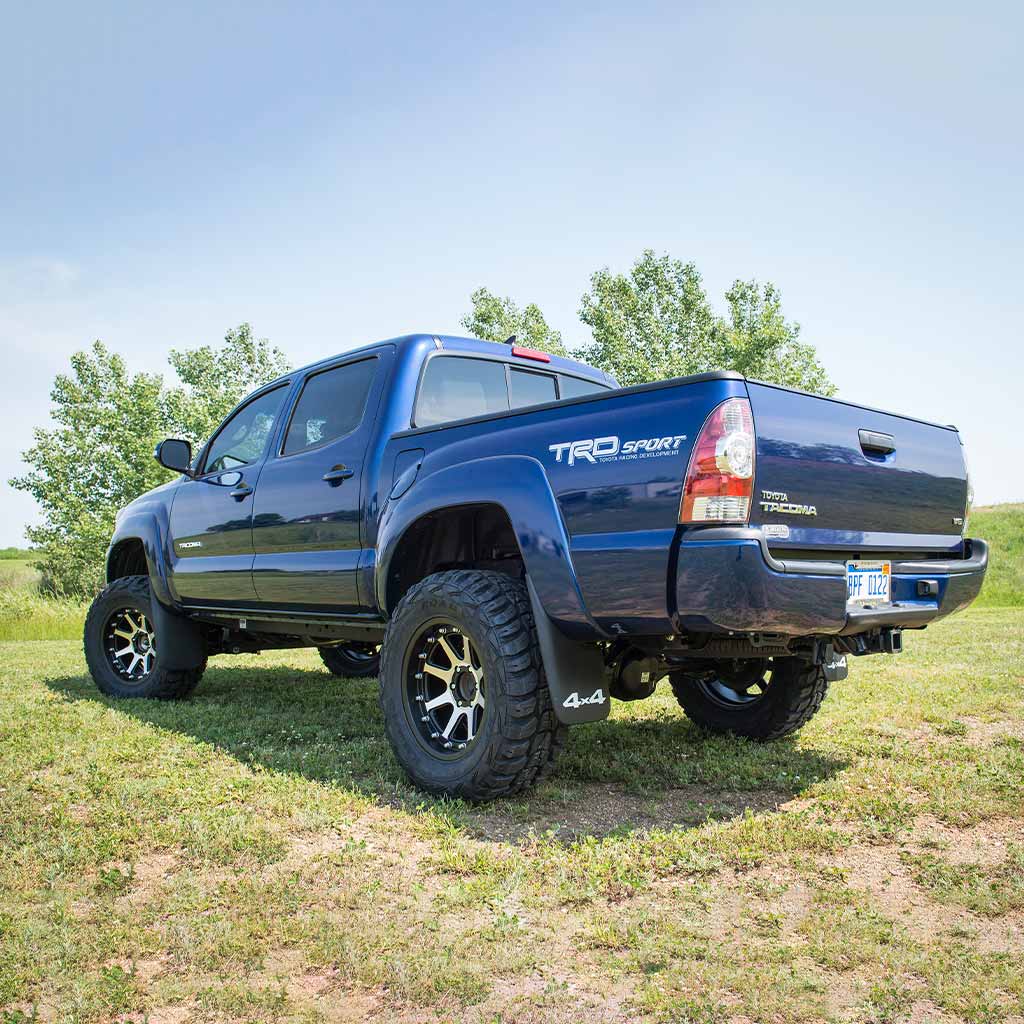

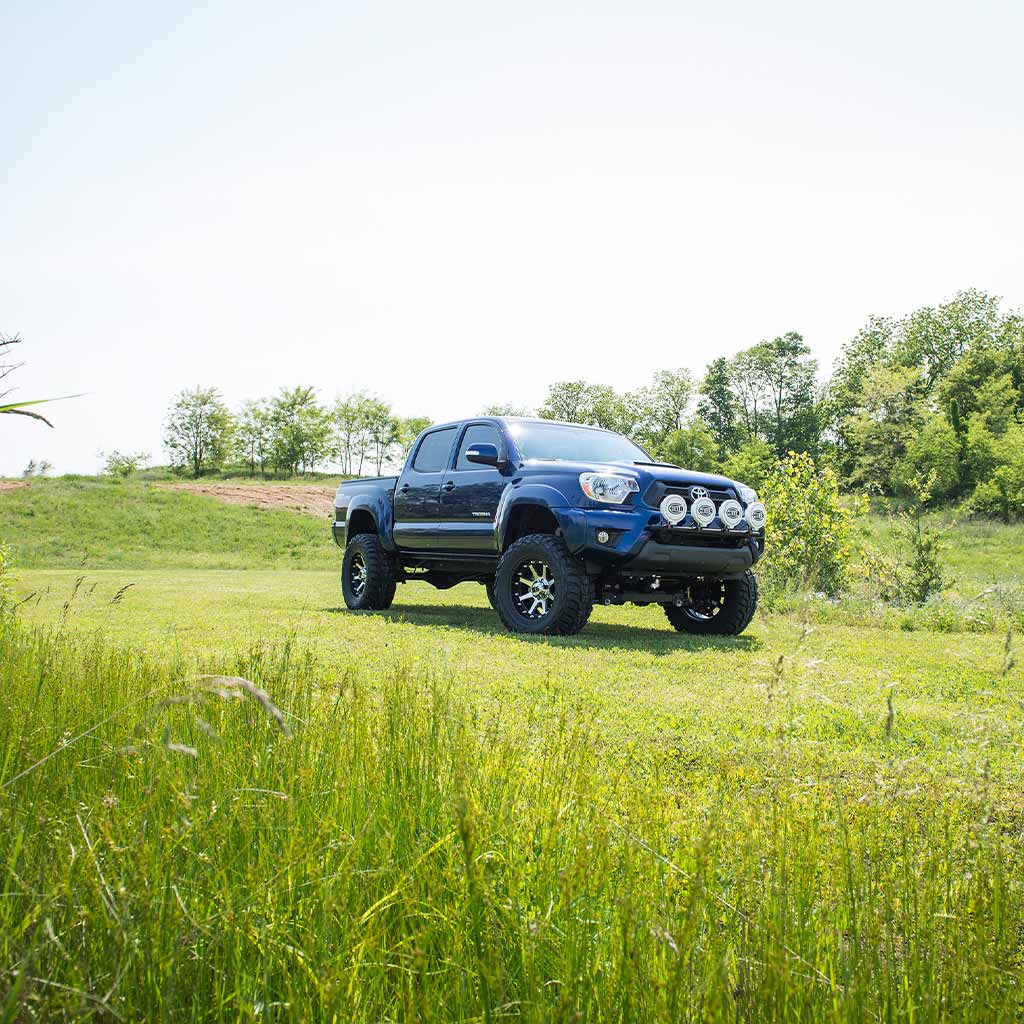

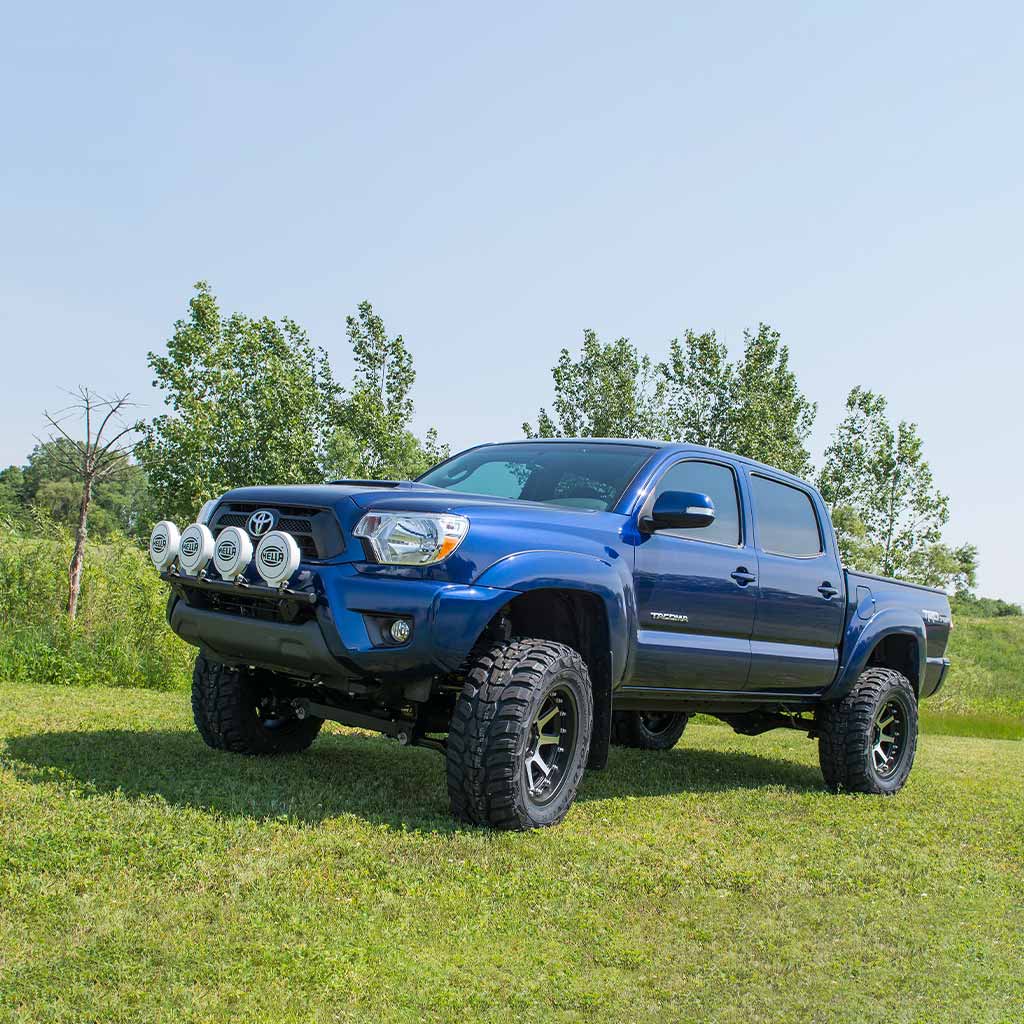

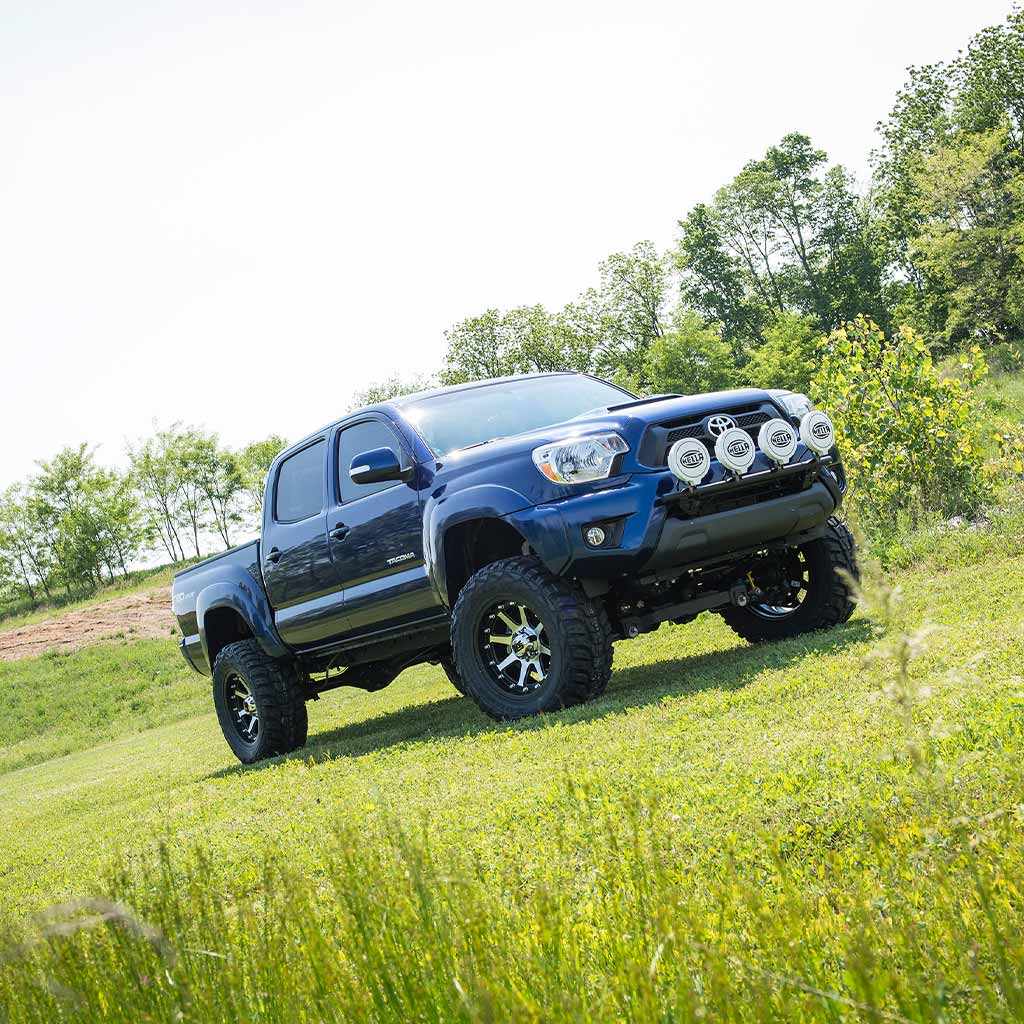

2005-2020 Toyota Tacoma 4WD 4" Lift Kit - 816H

These 4" complete systems are designed for on-road handling and off-road performance. This 4" IFS System utilizes heavy duty front & rear crossmembers coupled with a full width belly skidplate and multipoint differential relocation brackets to create a solid subframe to mount the suspension components and improved offroad protection. These combined with the high strength ductile iron steering knuckles offer optional on-road handling with ESC System compatibility along with improved ground clearance for better offroad performance. Additionally this kit includes bump stop brackets, sway bar relocation, lower control arm cams and brake line brackets. Top mounted strut spacers are supplied to set ride height and allow easy installation.

In the rear 3" lift blocks are supplied along with longer u-bolts and brake line brackets to set the rear up and level out the stance. Finishing off the rear are your choice of BDS NX2 gas shocks or FOX 2.0 performance series IFP gas shocks. This system will also fit 2wd PreRunner models, but will not work on the standard 2wd model.

    • Tire & Wheel Combinations
    • 33 x 12.50 w/18 x 9 and 4.5" Max. back spacing
    • w/20 x 9 and 4.5" Max. back spacing

*Trimming may be required*

  • Est. Installation: 6-8 hours
  • Difficulty Level (easy 1 - 5 complicated): 3

Kit Components

Qty Part# Description
1 018318 05-19 Tacoma 3" Rear Block Kit
1 028403 05-19 Tacoma 4" Front Box Kit 4 of 4
1 028600 2005-2020 Toyota Tacoma Front Box Kit 1
1 028601 05-15 Tacoma Front Box Kit 2 of 4
1 028602 05-15 Tacoma Front Box Kit 3 of 4
2 85954 NX² Shock Absorber
