kit is based around two one-piece, 1/4" laser cut high clearance crossmembers and replacement steering knuckles. The high clearance crossmembers increase ground clearance for off road performance. The replacement steering knuckles reduce installation time as well as maintain proper steering angles and ball joint angles. A differential skid plate is included for off road protection.
Bump stop drops, anti-sway bar extensions, 3 point differential drop system, and strut relocation brackets are also included in this Dodge 4" lift kit. The rear is lifted via a 2" block and u-bolt kit.
- Tire & Wheel Combinations
- 35" x 12.50" w/17 x 9 and 4-1/2" back spacing
- 35" x 12.50" w/18 or 20 x 9 and 5" back spacing
*Trimming may be required*
- Est. Installation: 10 hours
- Difficulty Level (easy 1 - 5 complicated): 4

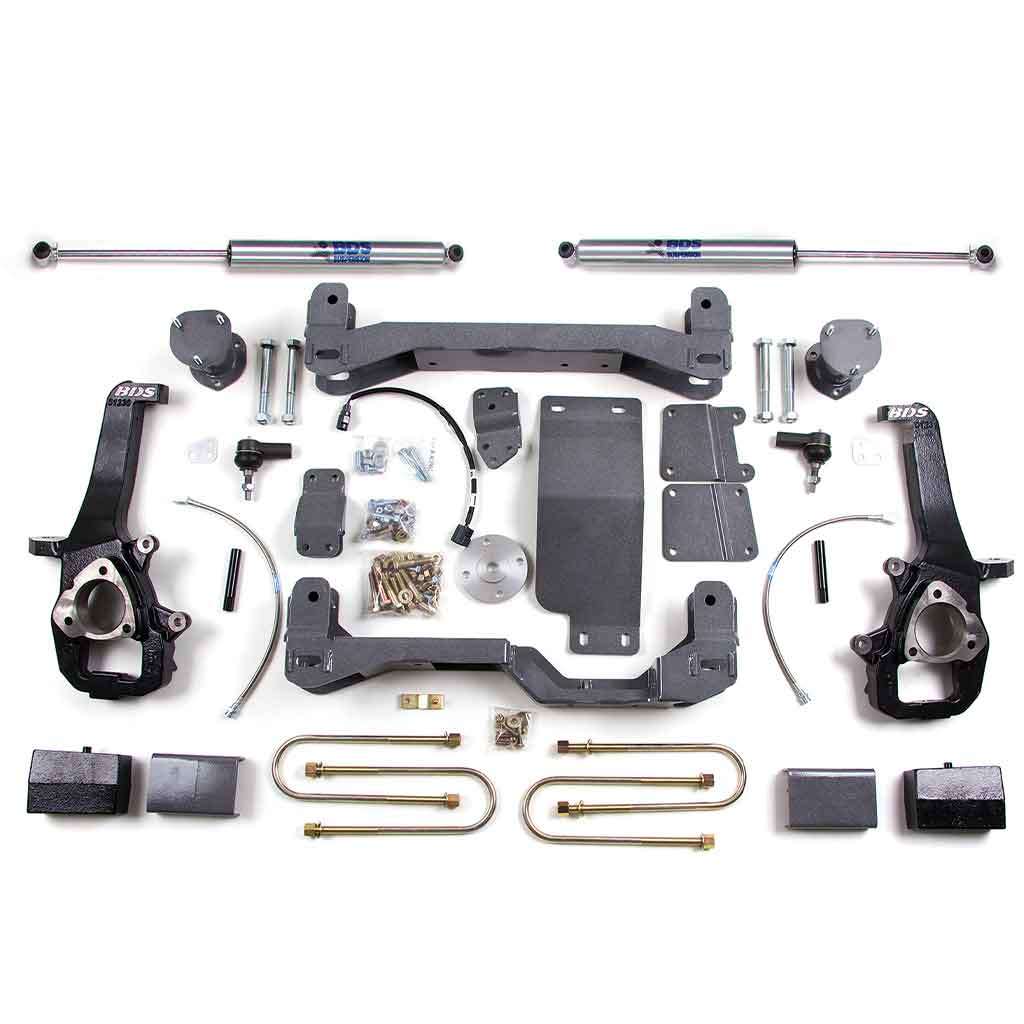

Kit Components
Qty | Part# | Description |
---|---|---|
1 | 012218 | 06-08 Dodge 1500 2in Rear Box Kit |
1 | 022401 | 06-10 Dodge 1500 4in Front Box Kt (3of4) |
1 | 022605 | 06 Dodge 6" Box 4 Of 4 |
1 | 022620 | 06-10 Dodge 1500 6in Front Box Kt (1of4) |
1 | 022621 | 06-10 Dodge 1500 6in Front Box Kt (2of4) |
2 | 85758 | NX² Shock Absorber |
