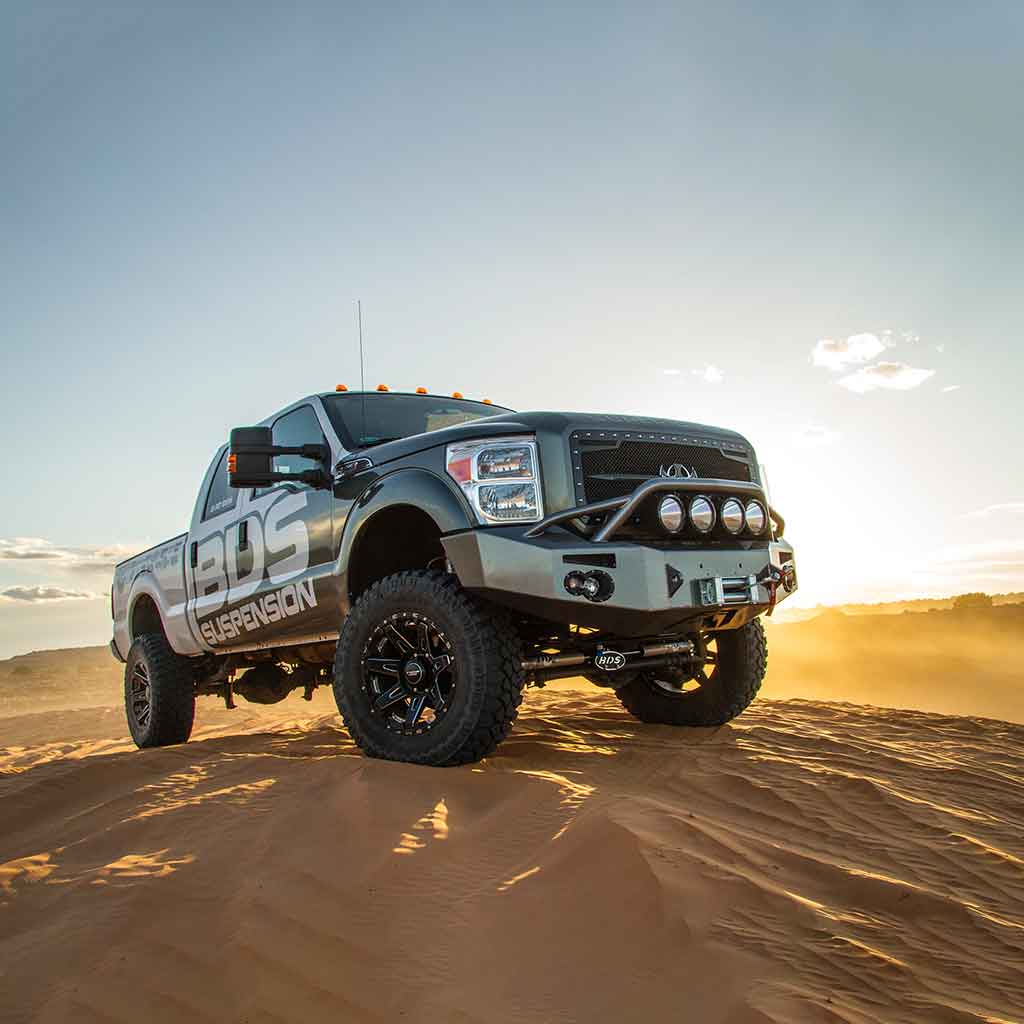

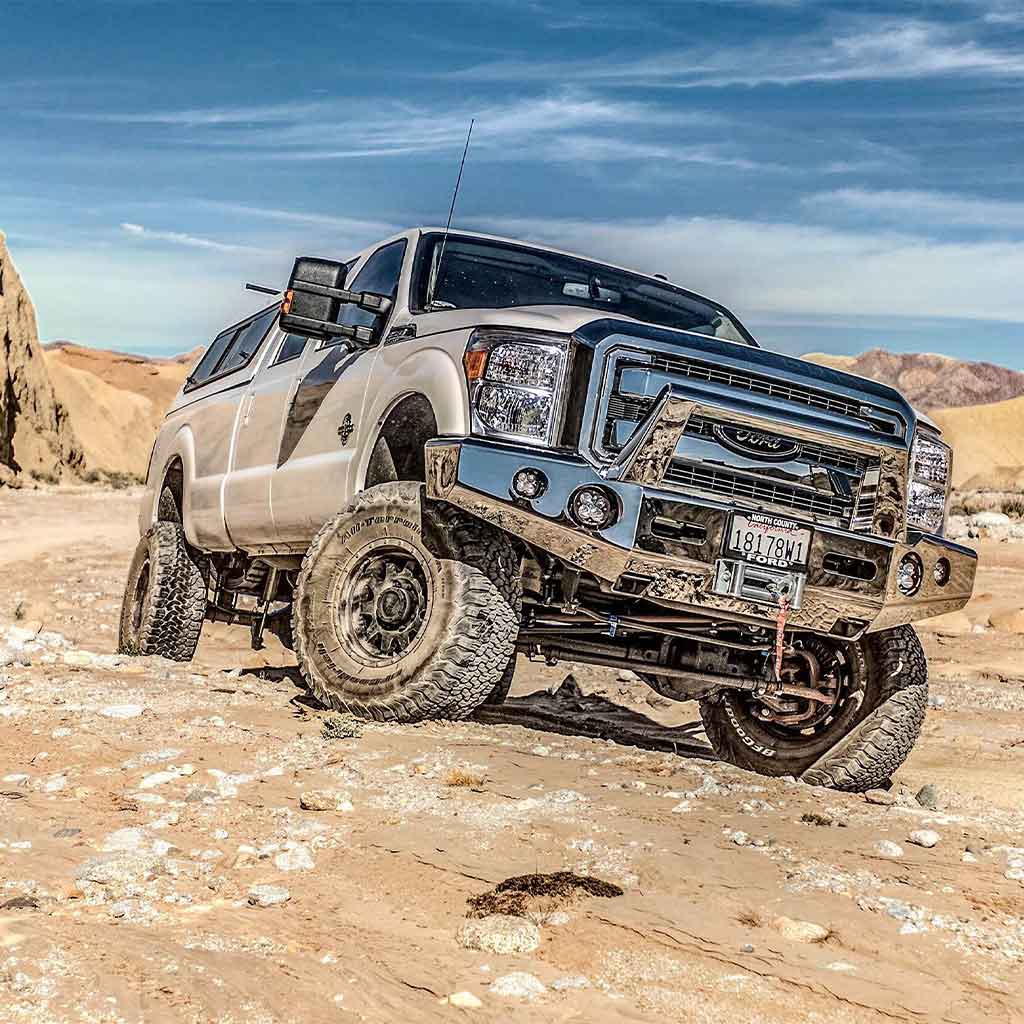

2011-2016 Ford F250-F350 Super Duty 4WD 6" Radius Arm Lift Kit - 1592H

These systems are built for improved all around performance, capability and comfort. At the heart of these kits are a pair of heavy duty replacement radius arms built to withstand whatever abuse you can throw at them. Constructed from 1-3/4" OD -10GA DOM tubing with support gussets, these radius arms are far superior to the factory stamped steel units. They use a high clearance design for extra ground clearance and and additional clearance of oversized tires. They incorporate factory style 3-1/4" rubber bushings to minimize road vibrations and allow for a long, maintenance-free bushing life. The arms bolt into the factory mounting points and utilize a lower cam slot to be used with the provided cam locks to correctly position the fron axle and correct caster angle.

The additional height comes from a pair of full length ProRide coil springs. These springs are a direct bolt-in replacement, designed with the spring rate specific to the weight of either the diesel or gas engine while providing 6" of lift. These paired with your choice of BDS NX2 series gas shocks or the precision tuned FOX 2.0 performance gas shocks offer a smooth ride and improved control over rough terrain. To improve steering angles a forged drop pitman arm is supplied with an integrated drag link flip. Used in combination with the 1/4" thick heavy duty track bar drop bracket will position the front axle and keep the track bar angle in phase with the steering for improved handling. Also included for the front suspension are a pair of sway bar relocation brackets, bump stop extensions, brake line relocation brackets and a steering stabilizer mounting bracket.

In the rear, BDS supplies replacement GlideRide leaf springs with integrated overload leaf for great all around capabilty and limit any potential axle wrap. Also included are rear u-bolts, rear brake line relocation bracket and matching rear NX2 or FOX 2.0 gas shocks. As with all kits these include all hardware and step-by-step instructions to complete the install. As with all BDS lift kits, this kit is backed by Factory Protection Plus for peace of mind wherever your adventures may take you. Factory Protection Plus includes BDS's exclusive No Fine Print Warranty along with a 5-year, 60,000-mile drivetrain warranty.

• Tire & Wheel Combinations
• 37x12.50 w/20x9 and 4.5" back spacing
• 37x12.50 w/18x9 and 4.5" back spacing

*Trimming may be required*

• Est. Installation: 8 hours
• Difficulty Level (easy 1 - 5 complicated): 3

Kit Components
