2012 Dodge Ram 1500 Truck 4WD 4" Lift Kit - 664H
2012 Dodge Ram 1500 Truck 4WD 4" Lift Kit - 664H
2012 Dodge Ram 1500 Truck 4WD 4" Lift Kit - 664H
Click to zoom in

2012 Dodge Ram 1500 Truck 4WD 4" Lift Kit - 664H

BDS Suspension 4" 2012 Dodge Ram 1500 4WD 1/2 Ton Pickup.
664H
Lift Kits
664H
$2,345.96
Snap Logo Lease for as low as $/week Learn More

2012 Dodge Ram 1500 Truck 4WD 4" Lift Kit - 664H

This 4" lift kit is based around two one-piece, 1/4" laser cut high clearance crossmembers and replacement steering knuckles. The high clearance crossmembers increase ground clearance for off road performance.

The replacement steering knuckles reduce installation time as well as maintain proper steering angles and ball joint angles. A differential skid plate is included for off road protection.

The system also includes bump stop drops, anti-sway bar links, 3 point differential drop system, strut relocation brackets, and front stainless steel brake lines.

The rear is lifted via BDS 2" coil spacers to level most trucks.. The rear for this Dodge Ram lift kit is completed with a track bar bracket, upper link relocation brackets and sway bar links. A 3" rear coil spring option is avaialbe depending on your desired stance.

Check out more options and build your own kit by clicking on customize this kit.

    • Tire & Wheel Combinations
    • 35" x 12.50" w/17 x 9 and 4-1/2" back spacing
    • 35" x 12.50" w/18 or 20 x 9 and 5" back spacing

*Trimming may be required*

  • Est. Installation: 10 hours
  • Difficulty Level (easy 1 - 5 complicated): 4

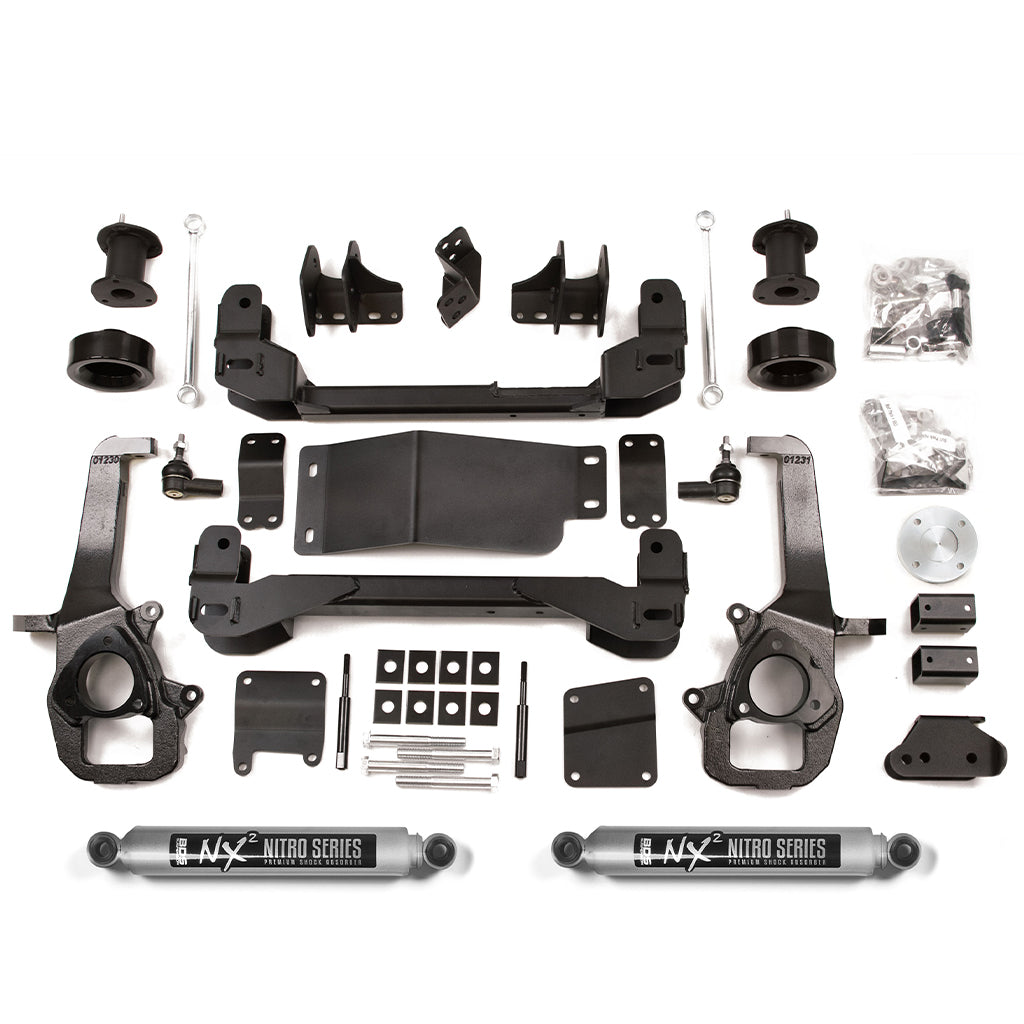

Kit Components

Qty Part# Description
1 022209 09-12 Dodge 1500 2in Rear Spacer Kit
1 022402 2012 Dodge 1500 4in Frnt Box Kit 3of4
1 022620 06-10 Dodge 1500 6in Front Box Kt (1of4)
1 022621 06-10 Dodge 1500 6in Front Box Kt (2of4)
1 022625 2012 Dodge 1500 6 in Frnt Box Kit 4 of 4
2 85758 NX² Shock Absorber
