Dodge put a whole new front differential assembly in the 2012 models. This housing has all new mounting points that differ from the previous model years so BDS has developed a complete new 6" lift system specifically for your 2012 Dodge 1500 truck.

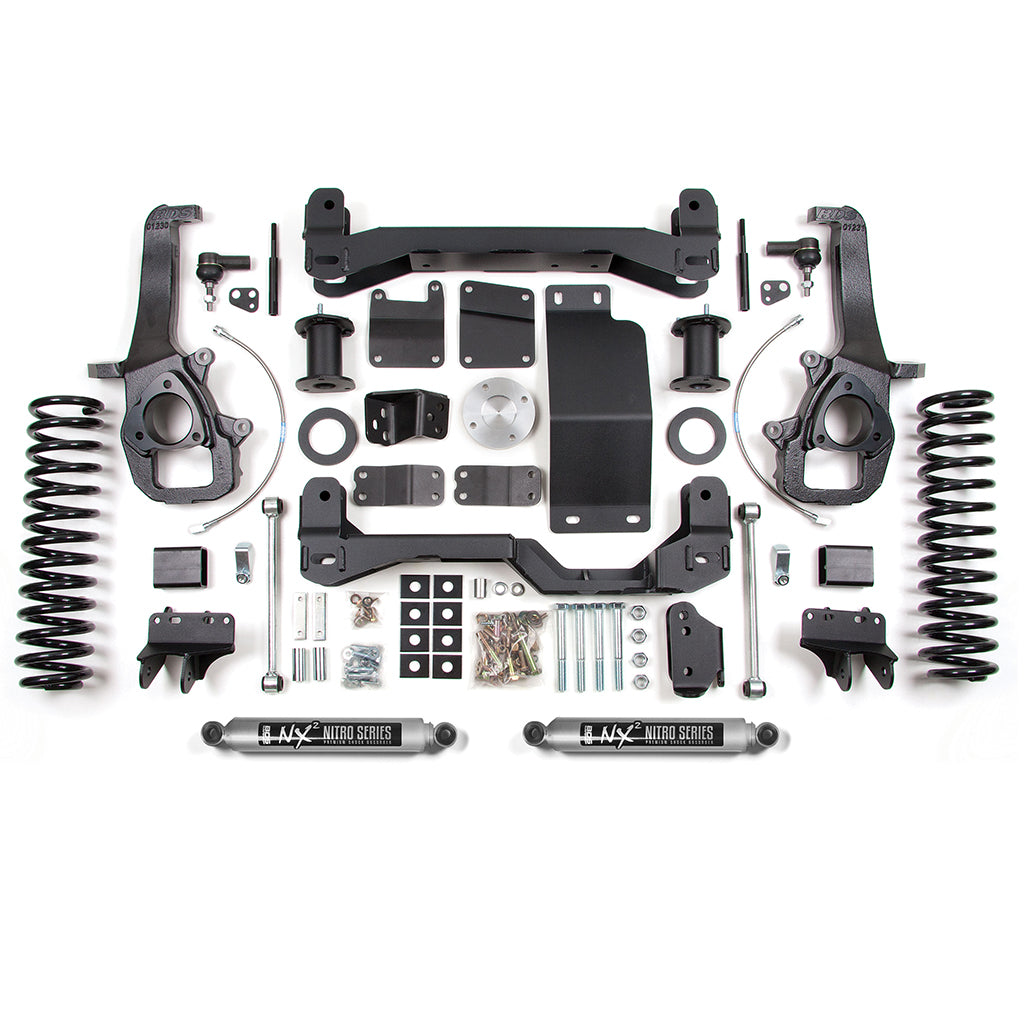

This 6" lift kit is based around two one-piece, 1/4" laser cut high clearance crossmembers and replacement steering knuckles. The high clearance crossmembers increase ground clearance for off road performance on on road appeal.
The replacement steering knuckles reduce installation time as well as maintain proper steering angles and ball joint angles. A differential skid plate is included for off road protection.
The system also includes bump stop drops, anti-sway bar links, 3 point differential drop system, strut relocation brackets, and front stainless steel brake lines.
Due to the OE ride height variances, BDS allows you to customize your desired stance by offering both 3" or 5" rear Pro-Ride coils that are capable of being smashed totally flat and will come back to normal ride height. The rear for this Dodge Ram lift kit is completed with a track bar bracket, upper link relocation brackets, and sway bar links.
Rear NX² series shock absorbers are included with BDS by Fox 2.0 series gas shocks availble as an upgrade.
- Tire & Wheel Combinations
- 37" x 13.50" w/17 x 9 and 4-1/2" back spacing
- 37" x 13.50" w/18 or 20 x 9 and 5" back spacing
*Trimming may be required*
-
Est. Installation: 10 hours
-
Difficulty Level (easy 1 - 5 complicated): 4
Kit Components
| Qty |
Part# |
Description |
| 1 |
022309 |
09-18 Dodge 1500 3in Rear Box Kit |
| 1 |
022620 |
06-10 Dodge 1500 6in Front Box Kt (1of4) |
| 1 |
022621 |
06-10 Dodge 1500 6in Front Box Kt (2of4) |
| 1 |
022624 |
2012 Dodge 1500 6in Frnt Box Kit 3 of 4 |
| 1 |
022625 |
2012 Dodge 1500 6 in Frnt Box Kit 4 of 4 |
| 2 |
85758 |
NX² Shock Absorber |
