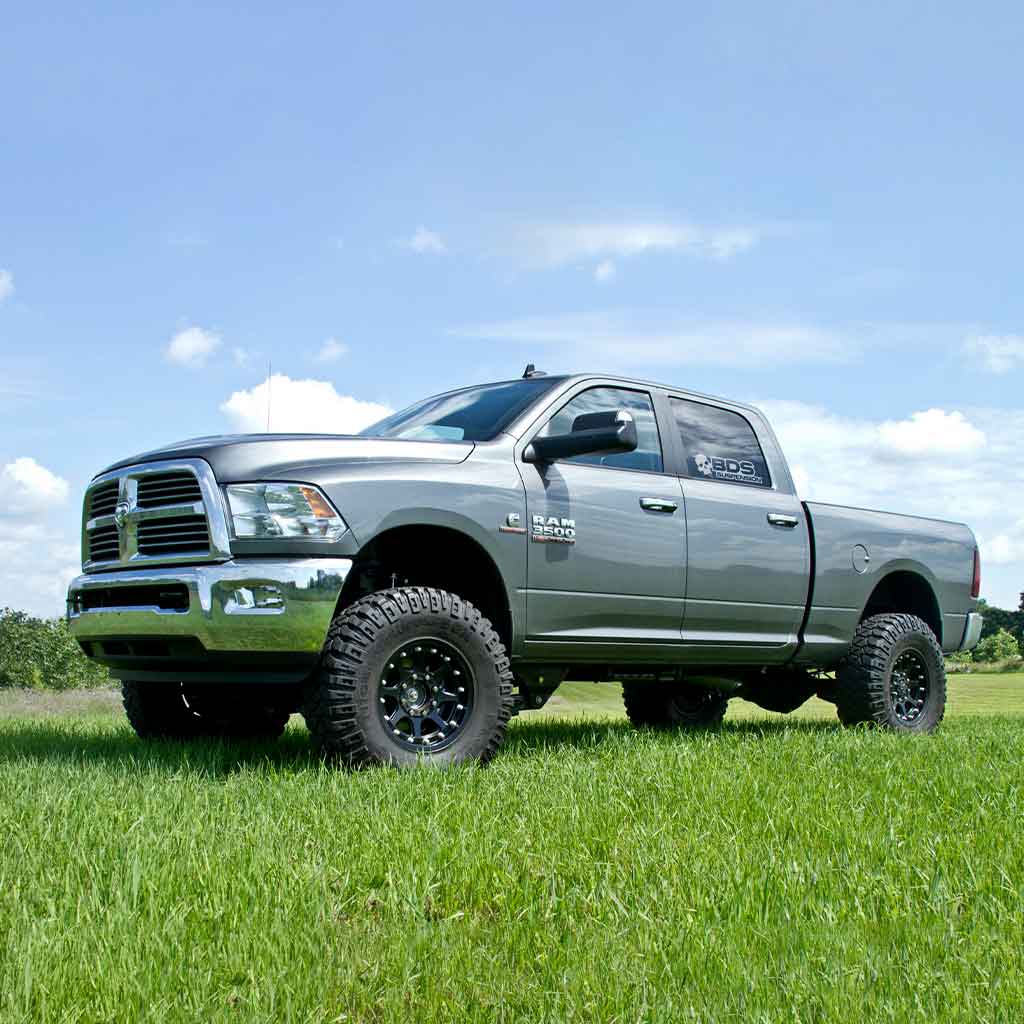

Designed to improve the looks and performance of your RAM 3500, these kits include everything necessary to correctly lift them for improved offroad capability while maintaining on-road handling. The 4" kits will lift and level the stance with clearance for up to 37" tires. They use a pair of full-length progressive rate coil springs to provide extra height and smooth controlled performance. A forged drop pitman arm is supplied to correct steering angles along with an HD bar drop bracket to re-center the front axle. A pair of sway bar drop brackets to reposition the OE sway bar for optimal performance along with extended polyurethane bump stops to limit up travel and brake line brackets to allow full droop. To correct the front suspension geometry at the new height a pair of heavy-duty replacement radius arms bolt directly into the factory location. These new radius arms are a massive upgrade to the factory stamped units, using tubular construction and a lower cam adjustment to dial in the front end caster. Also supplied are your choice of BDS NX2 gas shocks or FOX 2.0 performance series IFP gas shocks for improved ride and performance.
In the rear of the RAM 3500 kits BDS supplies a 3" lift block to lift/level the stance comes along with repleacement high strength u-bolts and your choice of gas shocks. A bolt-on spacer is added to reposition the air bag to retain full functionality of the system.
*Trimming may be required*
| Qty | Part# | Description |
|---|---|---|
| 1 | 012318 | Ram 3500 Auto Level Air Suspension 3" Re |
| 1 | 012432 | 2014-2018 Ram 2500 4wd 4" Radius Arm Fro |
| 1 | 032302 | 4" Coil Box Kit |
| 1 | 122321 | 2013-2022 Ram 2500 /2013-2022 Ram 3500 R |
| 2 | 85700 | BDS NX2 Shock Absorber |
| 2 | 85758 | NX² Shock Absorber |
