This 4'' Performance Coilover Systems brings together the safety and capability of BDS's 4'' lift kits with the uncompromising performance of Fox factory series 2.5 remote reservoir coilovers and rear Fox 2.0 IFP shocks for true blend of on-road comfort and offroad performance, and engineered to the highest standard using quality materials built right here in the USA.
The Fox factory series 2.5 remote reservoir coilovers come pre-tuned with Eibach coil springs for impressive high speed offroad performance and the coilovers are pre-dialed to provide 4" of lift right out of the box to speed up installation. These coilovers are built to outperform out on the trail while offering fade free performance to push your new F150 to the limits. The included Fox 2.5 Coil-Overs can also be upgraded to the DSC (dual speed compression) adjuster equipped coil-overs (more info below) for the ability to perfectly fine tune the ride quality and handling of your Fox coil-overs.

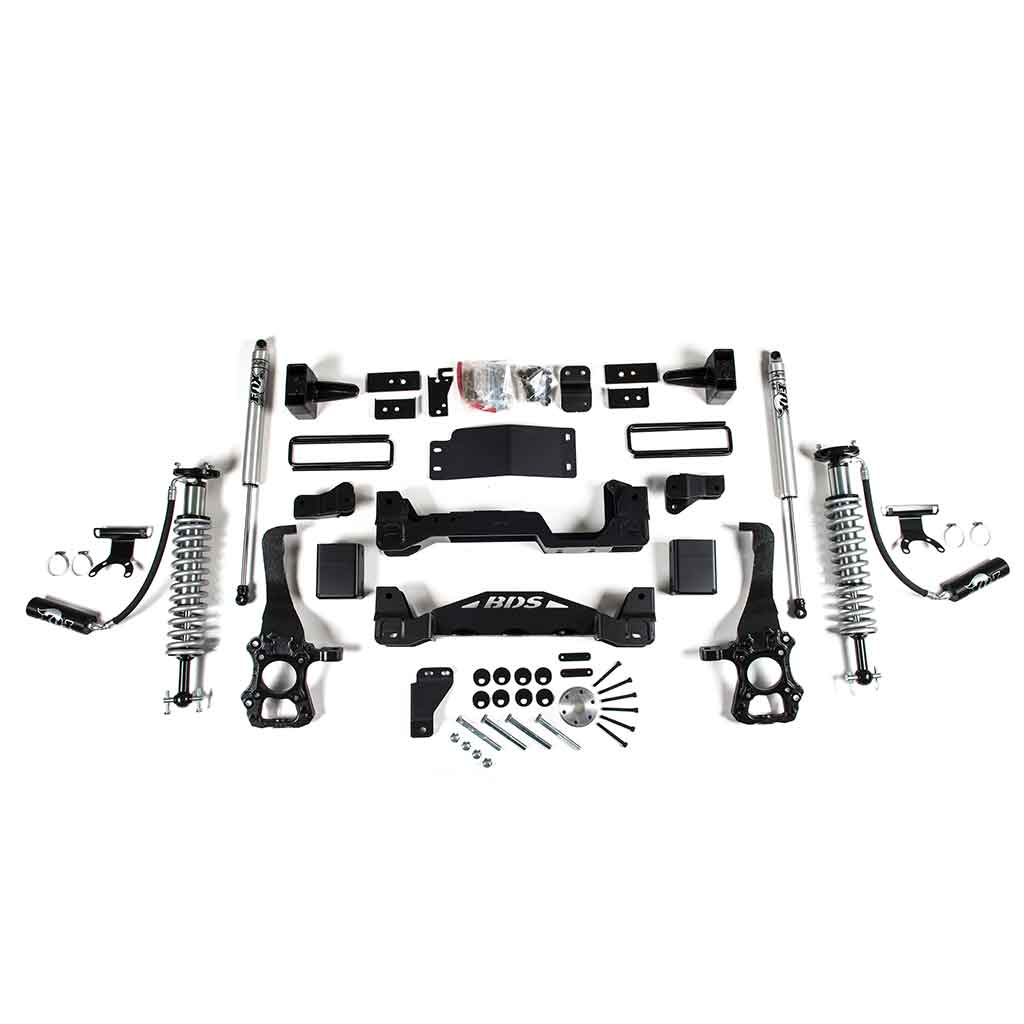

Also supplied are a pair of high clearance one-piece laser cut 1/4" steel crossmembers, CNC-machined ductile iron steering knuckles, heavy duty replacement ball joints, multipoint differential relocation brackets, heavy duty differential skid plate, sway bar relocation brackets, new alignment cam bolts, and billet aluminum driveshaft spacer. In the rear a 4" offset pin block kit recenters the rear axle in the wheelwell and replacing the factory 1.25'' block to eliminate stacking blocks. Rear brake line extensions and Fox 2.0 shocks round out this kit offering exceptional performance on any terrain and clearance for up to 35'' tires to be installed. This 4'' performance coilover system has been designed, tested, and independently confirmed to integrate flawlessly with the new electronic stability control (ESC) systems and meets FMVSS No.126 compliancy safety standards.
This new 6'' lift kit is certified compliant with the National Highway Traffic Safety Administration's (NHTSA) FMVSS No.126 standards to not adversely effect the factory installed Electronic Stability Control (ESC) Systems installed on the new 2015-16 Ford F150. Along with FMVSS No.126 compliance, all BDS kits include the Factory Protection Plus Program offering peace of mind on road or on the trail. All kits include BDS's No Fine Print Warranty and a 5 year - 60,000 mile PLUS drivetrain warranty for the best lifted suspension protection coverage on the market.
FOX Coil-Over Dual Speed Compression (DSC) Adjuster Technology
The Dual Speed Compression (DSC) adjuster provides added control and comfort tuning for on-road use while also offering more aggressive damping for use off-road. The adjuster allows for precise suspension tuning with the simple twist of two clearly defined knobs: No tools and no mess, just a way to easily fine-tune your suspension to best suit your needs in any conditions. The DSC increases both low and high-speed compression levels up to 25%, allowing you to maximize small bump compliance and traction while still having the extra damping required for big hits.
- LSC Adjustment Range - The Low Speed Compression (LSC) adjuster knob offers 10 clicks of adjustment and primarily affects compression damping during slow suspension movements such as G-outs or smooth jump landings. It also affects wheel traction and the harshness or plushness of the vehicle's ride.
- HSC Adjustment Range - The High Speed Compression (HSC) adjuster knob offers 12 clicks of adjustment and mainly affects compression damping during medium to fast suspension movements such as steep jump faces, harsh flat landings, and aggressive wash board roads.
- Tire & Wheel Combinations
- 35" x 12.50" w/18 x 9 and 5" back spacing
- 35" x 12.50" w/18 x 9 and 5 - 5.5" back spacing
- 35 x 12.50 w/20 x 9 and 5-5.5" back spacing
*Trimming may be required*
- Est. Installation: 8-10 hours
- Difficulty Level (easy 1 - 5 complicated): 4
Kit Components
Qty | Part# | Description |
---|---|---|
1 | 013439 | 2015-2020 Ford F150 4" Rear Block Kit |
1 | 023634 | 2015-2020 Ford F150 Knuckle Box Kit - DS |
1 | 023635 | 2015-2020 Ford F150 Knuckle Box Kit - PS |
1 | 023650 | 2015-2020 Ford F150 Front Box Kit (1of2) |
1 | 023651 | 2015-2020 Ford F150 Front Box Kit (2of2) |
1 | 88302134 | Kit: BDS 2014-2023 Ford F150, Front Coil |
2 | 98224828 | Fox 2.0 Shock 31.02 x 18.95 x 2- EB1/EB1 |
