2015-2020 Ford F150 4WD 4" IFP Snap Ring Lift Kit - 1533FSR

High Clearance Coilover Systems for Ford F150 4WD trucks featuring FOX 2.0 Snap Ring Struts
1533FSR
Lift Kits
1533FSR
$2,767.97
Snap Logo Lease for as low as $/week Learn More

2015-2020 Ford F150 4WD 4" IFP Snap Ring Lift Kit - 1533FSR

These snap ring coilover systems join the current lineup offering improved performance and capability. These kits are based around the tried and true high clearance technology that has made BDS the go to for F150 suspension lifts, designed from the ground up to get the more out of your truck with the most ground clearance on the market. While some companies build "kits" to fit larger tires, BDS Suspension prides itself in engineering complete suspension systems designed to take your vehicle's performance to the next level while retaining OE-level functionality.

At the heart of these new systems are a pair of precision tuned FOX 2.0 performance series (non-reservoir) coilover struts designed for use with the factory coil spring and top plate. These non-reservoir FOX coilovers offer improved onroad and off-road performance and allow easy setup with 2 snap ring grooves for either 4" or 6" of lift. They are a direct bolt-in replacement for the factory strut assemblies and improve damper performance featuring a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, 5/8" hard chrome plated heat treated alloy shaft. Complimenting the coilover struts, BDS utilizes a pair of specially designed 1/4" thick laser cut high clearance crossmembers to maximize clearance and provide a solid mounting point for the OE lower control arms. These paired with a high strength differential skid plate to create a rigid subframe while adding protection for vital steering and driveline components. In place of the factory steering knuckles a pair of specially designed ductile iron replacement steering knuckles are supplied to maintain proper steering geometry for ESC system compatibility. These connect to the factory steering with a pair of heavy duty replacement tie rod ends included in the kit. The front differential is repositioned with BDS's multipoint relocation bracket system tying into the frame and control arm pockets to further secure the front differential to keep CV axle angles at a minimum. A front driveshaft spacer is also supplied along with longer hardware to allow the reinstallation of the factory driveshaft. A pair of sway bar drop brackets used to correct the operating angle of the factory sway bar as well as created a strong brace between the rear crossmember and the frame. Rounding out the front of this kit are new lower control arm cam bolts to allow alignment and a weld-in frame reinforcement plate for extra strength.

In the rear of this performance lift kit, the factory block is replaced with a tall lift block and longer u-bolts to lift and level the stance. Also included, BDS supplies brake line and ABS line brackets allow the use of factory brake lines. Rear damper capacity is improved by your choice of specially tuned FOX 2.0 IFP Performance Series gas shocks to match the front performance. All kits come finished in a durable textured black powder coat and sent with all hardware packs to complete the install along with step-by-step installation instructions.

    • Tire & Wheel Combinations
    • 37x12.50 w/20x9 and 5" back spacing
    • 35x12.50 w/20x9 and 5" back spacing

*Trimming may be required*

  • Est. Installation: 8-10 hours
  • Difficulty Level (easy 1 - 5 complicated): 4

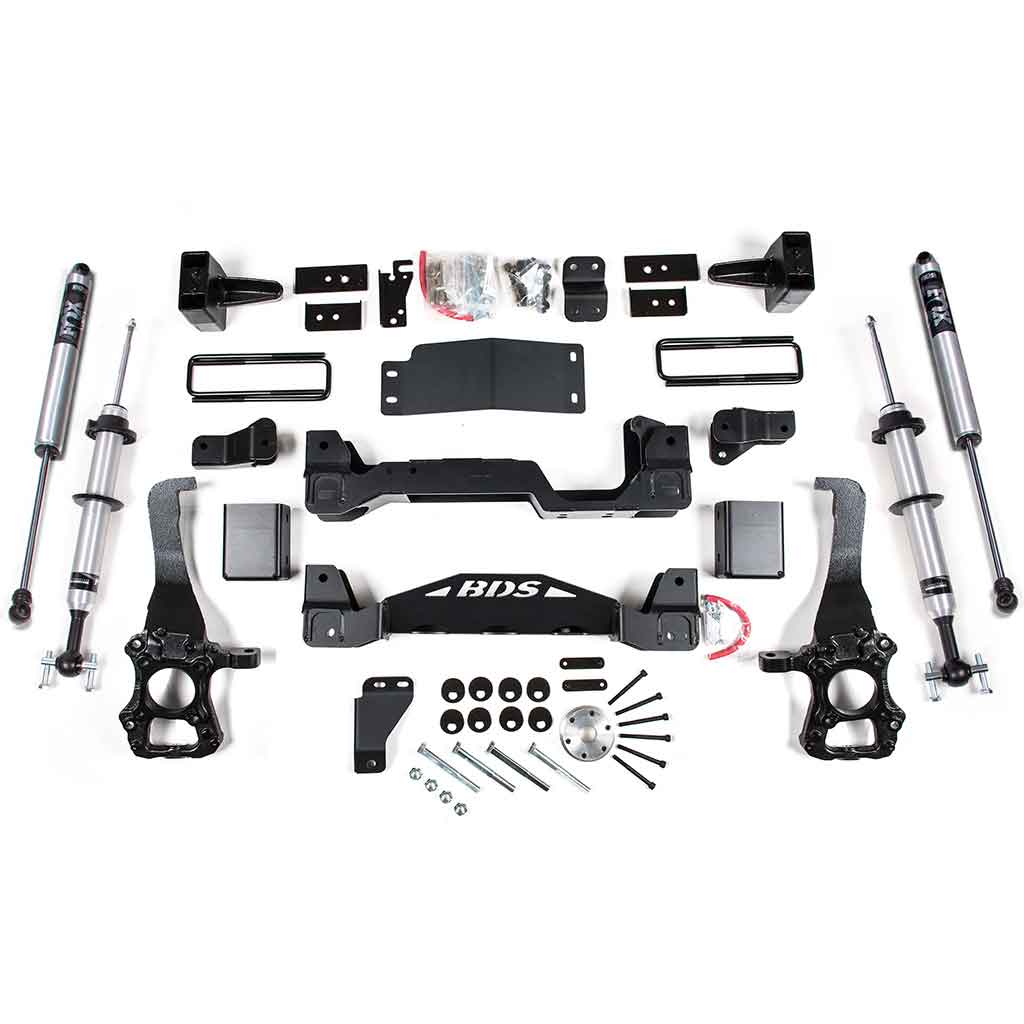

Kit Components

Qty Part# Description
1 013439 2015-2020 Ford F150 4" Rear Block Kit
1 023634 2015-2020 Ford F150 Knuckle Box Kit - DS
1 023635 2015-2020 Ford F150 Knuckle Box Kit - PS
1 023650 2015-2020 Ford F150 Front Box Kit (1of2)
1 023651 2015-2020 Ford F150 Front Box Kit (2of2)
2 98224828 Fox 2.0 Shock 31.02 x 18.95 x 2- EB1/EB1
2 98662001 Kit: BDS, 14-On Ford F-150, Front Coilov
