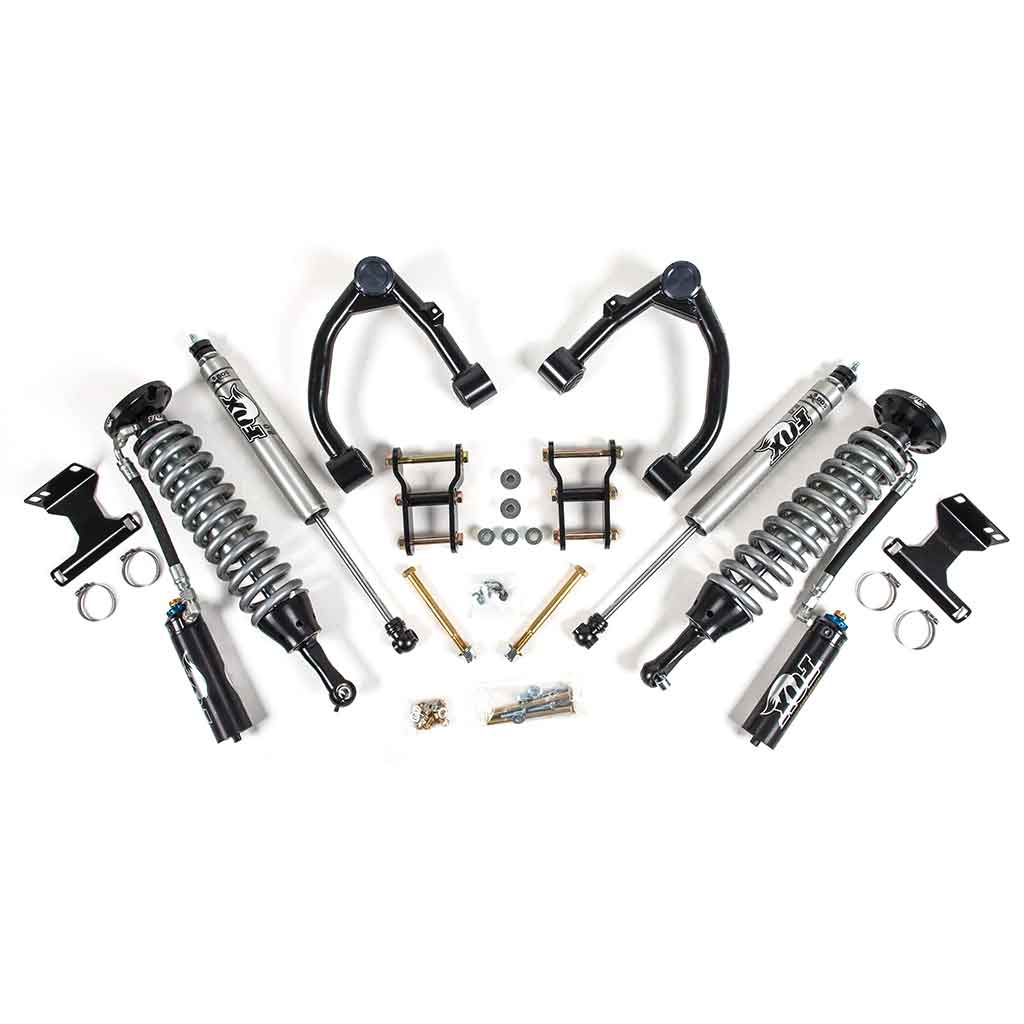

These kits use FOX 2.5 factory series remote reservoir coilovers for bolt-in upgrade to the factory strut assemblies for improved damper performance across all terrains. Coilovers are offered with standard remote reservoir or with DSC (dual speed compression) adjustment to dial in high-speed and low-speed compression settings. Also supplied as part of these complete 3" lift system are a pair of BDS performance series upper control arms (UCA). These UCAs improve suspension travel and while providing superior strength and styling to the factory arms. These arms are built from 1.5" OD heavy wall tubing, fully welded with integrated support gussets. They include brake line mounting tabs and use an indexed ball joint cup to correct ball joint positioning back to the neutral position at ride height. The BDS arms come fully assembled with OE-style rubber bushings for the frame mounts and a high-quality MOOG ball joint for smooth, quiet operation and better durability than arms that use heims and uniballs. 1" front differential spacers and longer hardware is supplied to reposition the front differential to keep CV axle angles at a minimum. In the rear, BDS supplies a set of heavy duty shackles. These shackles provide 1" of lift to level the stance and include grade 8 installation hardware. Rounding out the rear of this 3" coilover system are a pair of specially tuned FOX 2.0 performance series IFP shocks designed to pair with the front coilovers for impressive performance on and offroad. and allow clearance for 33" tires under Tundra.
As with all BDS lift kits these new 3" systems include Factory Protection Plus for the ultimate extended drivetrain warranty. Factory Protection Plus includes BDS's No Fine Print Warranty and a 5year-60,000mile drivetrain warranty to match the dealer. Get more out of your Tundra with these 3" coilover systems from BDS Suspension.
*Trimming may be required*
| Qty | Part# | Description |
|---|---|---|
| 1 | 028305 | 2007-2021 Toyota Tundra 3" Box Kit |
| 1 | 88002947 | NF: Kit: 07-ON Toyota Tundra w/ UCA, Fro |
| 2 | 98224700 | Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1 |
