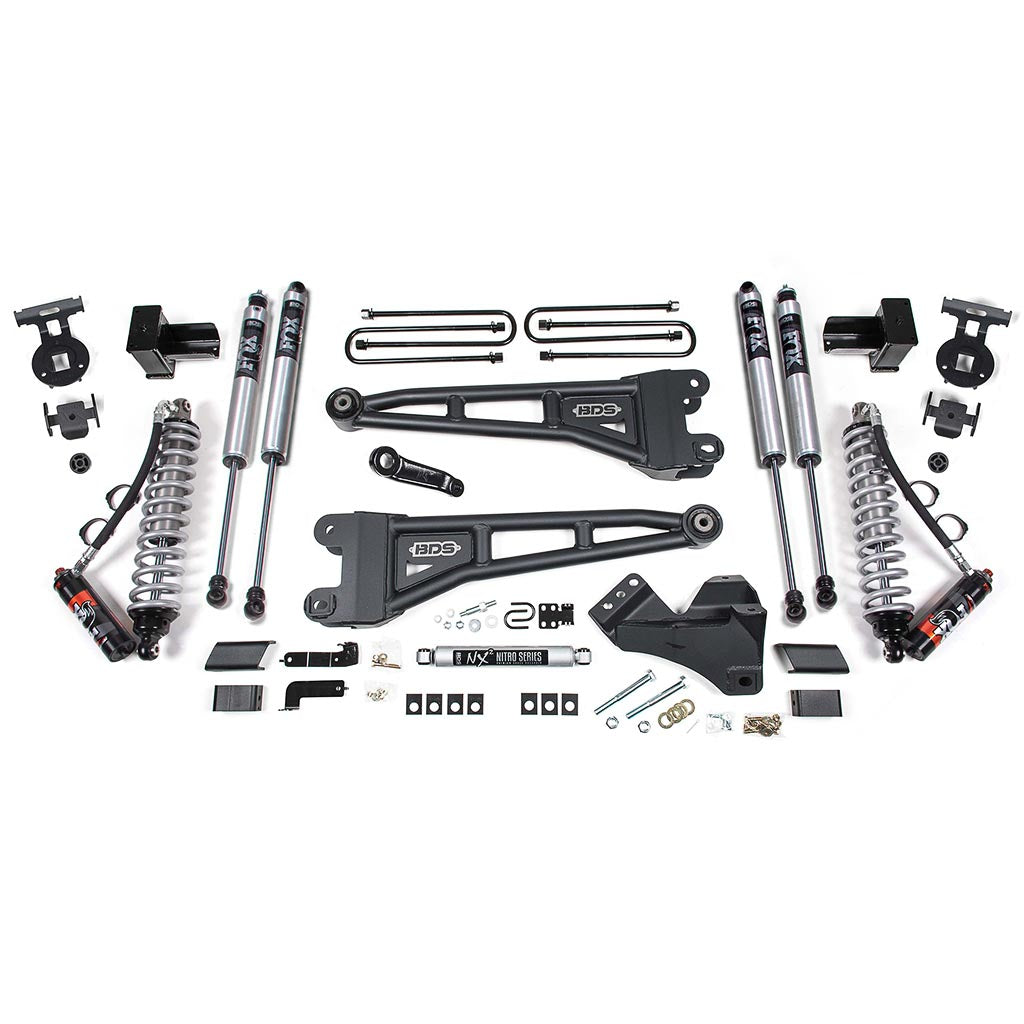

These kits are designed to improve performance and capability offroad while retaining great on-road handling. This kit builds on the standard BDS 4-link design to convert the front springs over to FOX 2.5 Performance Elite (PE) coilovers. These aluminum bodied coilovers offer improved damper performance, better heat dispersion and easy tuning via the DSC (dual speed compression) adjusters located on the reservoir allowing you to dial in the high-speed and low-speed compression settings. These coilovers come pre-tuned and full assembled to easy installation with the provided bolt-on coilover mounting brackets.
The foundation for this kit is the tried-and-true BDS 4-link conversion utilizing high strength tubular control arms and .25" steel brackets to correction positioning of the front axle, add strength and improving caster control. The kit also includes steering correction with a forged drop pitman arm along with a HD track bar bracket. Sway bar and brake line relocation brackets are utilized along with bump stop extensions. Your choice of lift solutions to lift and level out the stance in the rear. BDS designs this kit as a complete solution to transform your Super Duty to tame the any terrain. As with all BDS kits, these include Factory Protection Plus offering you a 5yr/60k-mile drivetrain warranty and no fine print warranty on the kit itself. Take your Super Duty to the next level with BDS and FOX.
*Trimming may be required*
| Qty | Part# | Description |
|---|---|---|
| 1 | 013601 | 2017-2022 Super Duty 4-Link Box Kit 1of2 |
| 1 | 013604 | 2017-2022 Ford F-250 / F-350 6In 4-Link |
| 1 | 013606 | 2020-2022 F250/F350 6.25in Rear Box Susp |
| 1 | 123605 | 2017-2022 SD T-Case Indexing Kit- DSL |
| 1 | 123613 | 2017-2022 Super Duty Coil-over Mount Kit |
| 1 | 85431 | NX2 Single Stabilizer (BDS Only) |
| 1 | 88406428 | Kit: BDS 05-On Ford SD Front Coilover, 2 |
| 2 | 98224718 | Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 |
| 2 | 98224750 | Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1 |
