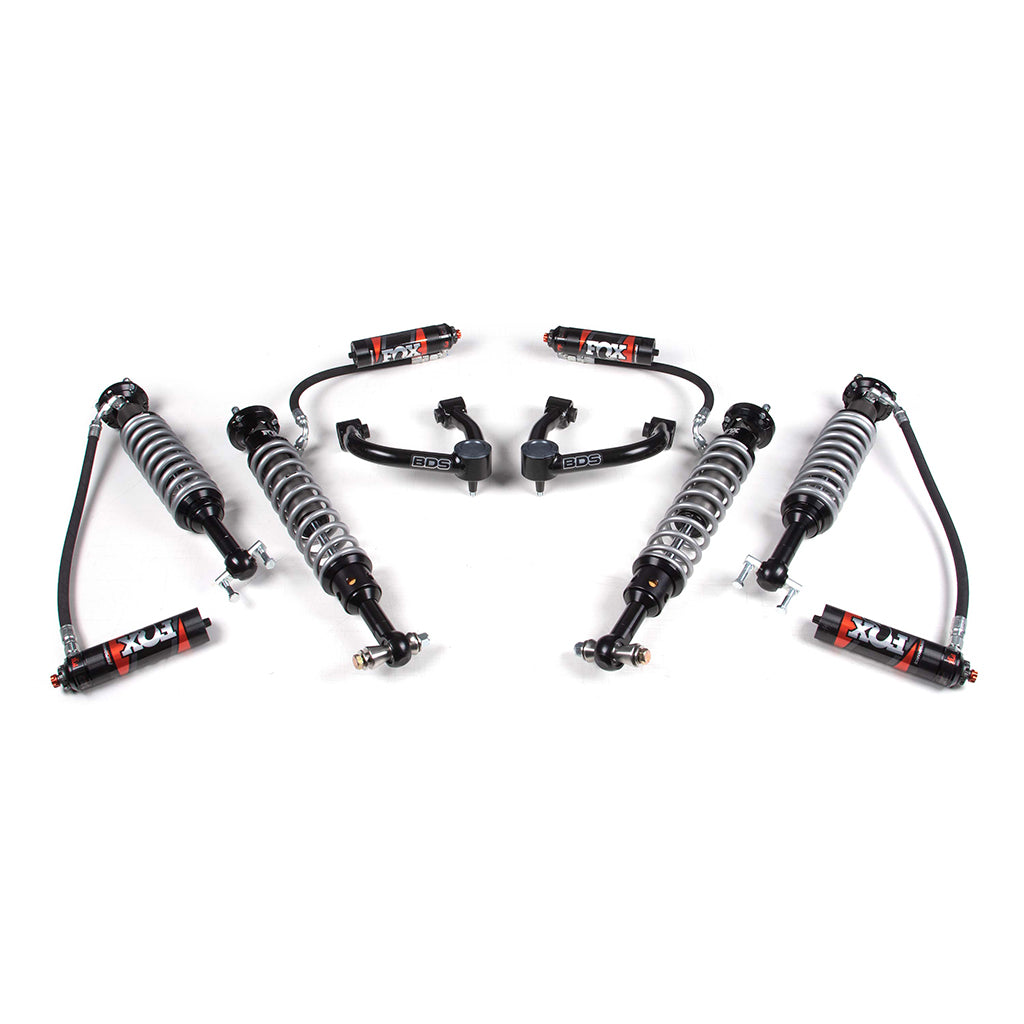

2021-2022 Ford Bronco 4 Door 3-4" Performance Elite Coilover Lift Kit System - 1905FPE

BDS adds next level performance and capability for the 2021 Ford Bronco 4-Door with 3-4" DSC Coilover Systems. Designed to outperform all on and offroad, these systems build off the stout factory suspension geometry upgrading to FOX 2.5 Performance Elite Series (PES) coilover at each corner of the vehicle. With aluminum-bodies, massive 7/8" hardened chrome shafts, and dual speed compression (DSC) adjustment, the coilovers are specially tuned for 4-Door Bronco models. These coilovers come ready to install right out of the box preloaded with coils and mounting hardware for the shocks and reservoirs. DSC allows for easy tuning of high-speed and low-speed compression valving to meet your performance needs in any terrain and match your driving style. Net lift height varies based on the factory suspension configuration as follows: 4-Door Sasquatch-equipped net 3" of lift, 4-Door Badlands: net 3.5" of lift, and 4-Door Broncos with the base suspension: net 4" of lift.

Along with the supplied FOX coilovers, BDS has engineered Performance Series upper control arms. The tubular design is specially formed to optimize clearance in a coilover configuration to allow for maximum droop travel along with clearance for a wide range of wheel/tire combinations. Camber angle is corrected at the taller ride height. At the frame mounts, BDS specs vulcanized rubber bushings for smooth, quiet maintenance-free operation in the factory mounts. High-strength FK uniballs add strength and provide more travel than traditional ball joints. BDS Performance Series control arms are finished in a durable gloss black powder coat with an anodized aluminum dust cap. These new systems are design for easy install with clearance for 35-37" tires.

Take your Bronco to the next level with BDS and FOX.

• Tire & Wheel Combinations
• 37x12.50 w/17x9 and 5-5.5" back spacing
• 37x12.50 w/18x9 and 5-5.5" back spacing
• 37x12.50 w/20x9 and 5-5.5" back spacing

*Trimming may be required*

• Est. Installation: hours
• Difficulty Level (easy 1 - 5 complicated):

Kit Components
