2021-2023 Ford F150 4WD 4" Coil-Over Lift Kit - 1583F

Pull out all the stops with this BDS 4" coilover system with clearance for 35" tires.
BDS Suspension
1583F
Lift Kits
1583F
$3,802.48
Snap Logo Lease for as low as $/week Learn More
2021-2023 Ford F150 4WD 4" Coil-Over Lift Kit - 1583F
Product Overview

These precision built and ultra capable 4" coilover lift systems offer improve vehicle performance and utilize FOX 2.5 factory series remote reservoir coilovers (available with optional DSC adjustment) for truely next level performance and capability. These coilover systems are based around the tried and true high clearance design that has made BDS the go to when lifting 2009+ F150s now updated specifically for the redesigned Ford F150. These systems include everything necessary to correct suspension, steering and driveline geometry to maintain on-road handling while improving strength and offroad capability. Kits feature a pair of high strength crossmembers, along with differential skid plate, steering knuckles, differential relocation brackets, sway bar relocation, brake line relocation, driveshaft extension, alignment cam bolts, rear blocks, longer u-bolts and FOX 2.0 performance series IFP gas shocks.

Improve the look and capability of your 2021 Ford F150.

    • Tire & Wheel Combinations
    • 35x12.50 w/20x8 and 5.5-5.75" back spacing
    • 295/60 w/20x9 and 4.5-5.75" back spacing
    • 35x12.50 w/18x8 or 20x9 and 4.5-5.75" back spacing

*Trimming may be required*

  • Est. Installation: 8-10 hours
  • Difficulty Level (easy 1 - 5 complicated): 4

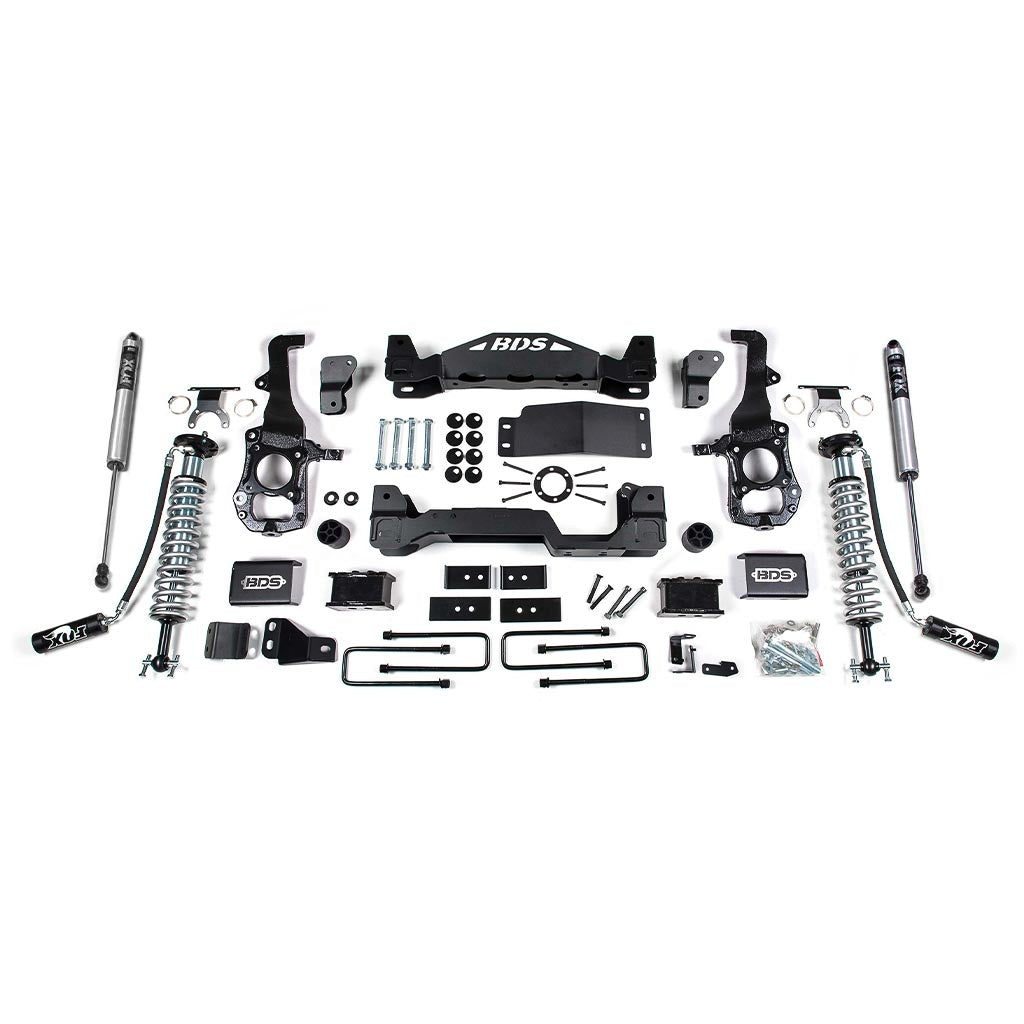

Kit Components

Qty Part# Description
1 013437 2021-2023 Ford F150 3" Rear Box Kit
1 023652 2021-2023 Ford F150 Front Box Kit (1of2)
1 023653 2021-2023 Ford F150 Front Box Kit (2of2)
1 023670 2021-2023 Ford F150 Knuckle Box Kit - DS
1 023671 2021-2023 Ford F150 Knuckle Box Kit - PS
1 88302134 Kit: BDS 2014-2023 Ford F150, Front Coil
2 98224828 Fox 2.0 Shock 31.02 x 18.95 x 2- EB1/EB1

This browser does not support PDFs. Please download the PDF to view it: Download PDF.
