These precision built and ultra capable 6" lift systems offer improved vehicle performance and allow clearance for 35-37" tires. Designed specifically for trucks equipped with CCD (Continuously Controlled Damping), this IFS system is based around the tried and true high clearance design that has made BDS the go-to option when lifting F150s. These systems include everything necessary to correct suspension, steering and driveline geometry to maintain on-road handling while improving strength and offroad capability.

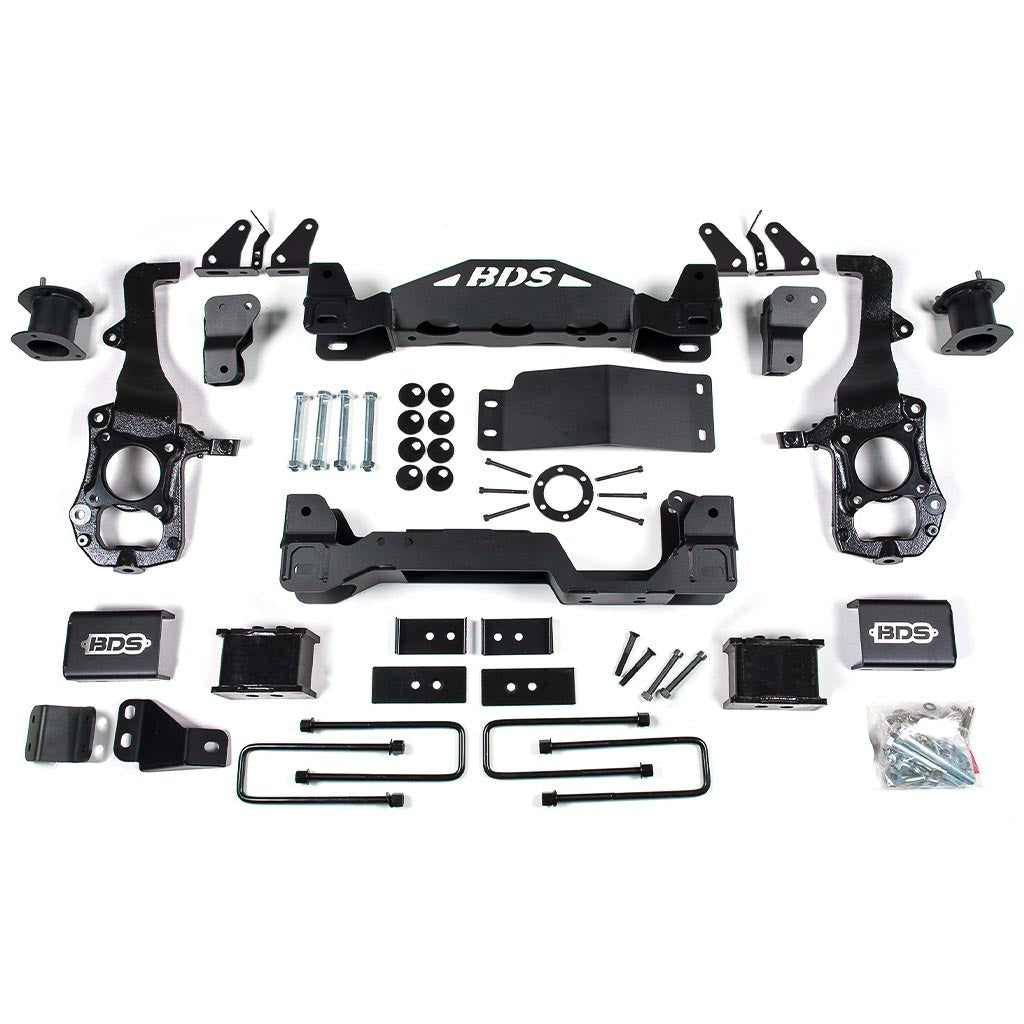

Kits feature a pair of high strength crossmembers, along with differential skid plate, steering knuckles, differential relocation brackets, top mounted strut spacers, sway bar relocation, brake line relocation, driveshaft extension, alignment cam bolts, rear blocks, and longer u-bolts.
- Tire & Wheel Combinations
- 37x12.50 w/18x9 or 20x9 and 5.5.-5.75" back spacing
- 35x12.50 w/20x9 and 4.5-5" back spacing
*Trimming may be required*
- Est. Installation: 8-10 hours
- Difficulty Level (easy 1 - 5 complicated): 4
Kit Components
Qty | Part# | Description |
---|---|---|
1 | 013538 | 2021-2023 Ford F150 5in Rear Box Kit |
1 | 023645 | 2021-2023 Ford F150 4wd 6" Strut Spacer |
1 | 023652 | 2021-2023 Ford F150 Front Box Kit (1of2) |
1 | 023653 | 2021-2023 Ford F150 Front Box Kit (2of2) |
1 | 023670 | 2021-2023 Ford F150 Knuckle Box Kit - DS |
1 | 023671 | 2021-2023 Ford F150 Knuckle Box Kit - PS |
