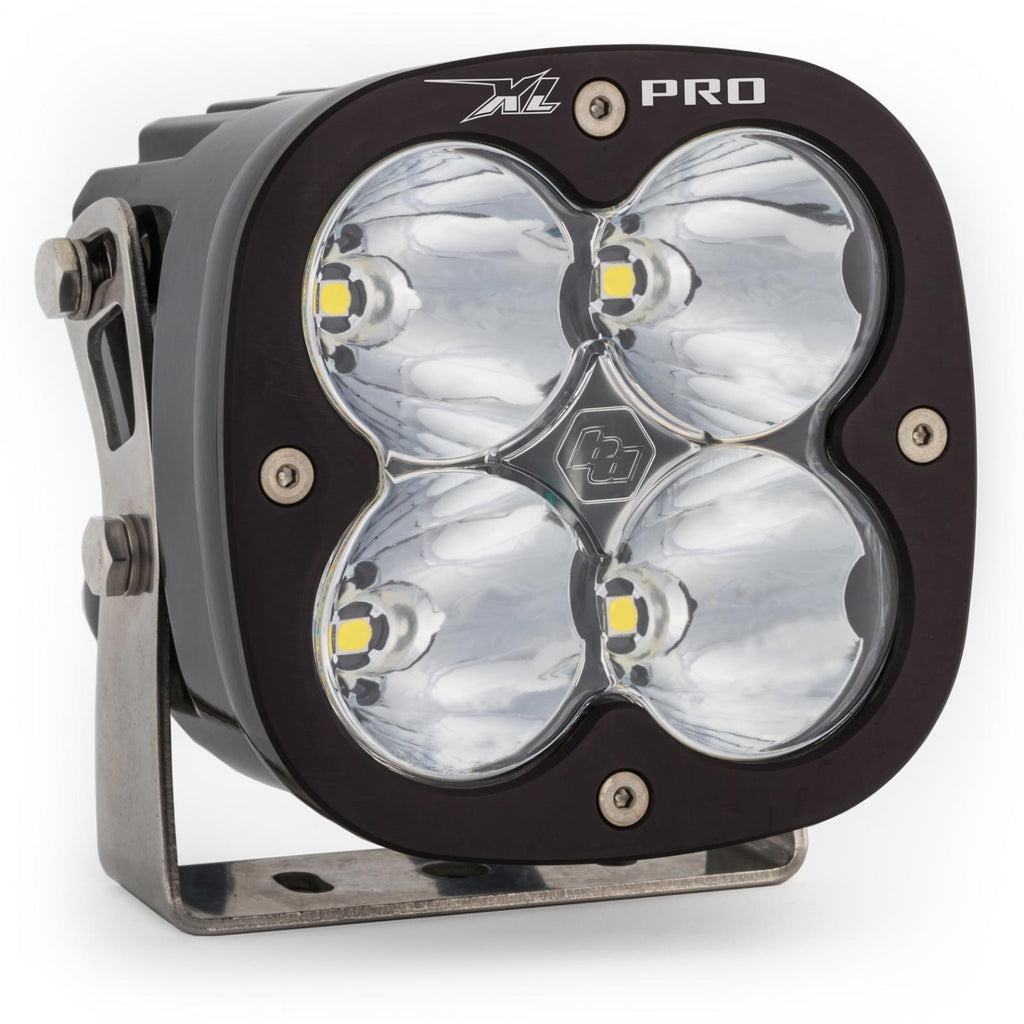

Baja Design Squadron XL Pro

With a 4,900 lumen count and a power draw of 40 watts per light, the XL Pro is an ideal replacement for an HID, and offers a 20 percent dimming feature. The XL Pro LED light utilizes our trademarked High Speed Spot reflectors providing for a longer beam pattern. Perfect for enthusiasts that need a vast amount of light and are looking for something other than a light bar. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

Baja Designs Features:

• Satisfactions Guarantee  - 30 Day Money Back Guarantee
• Limited Lifetime Warranty - Complete Purchase Protection
• uService - Replaceable Lenses And Optics
• ClearView - All The Light, Right Where You Need It.
• MoistureBlock - Waterproof, Rain Proof, Submersible
• CopperDrive - Only LED Driven At 100 percent
• 5000K Daylight - Less Driver Fatigue, Natural Color

Specifications (per light):

• Lumens: 4,900 Utilizing 4 Cree XP-L LEDs
• Wattage/Amps: 40W / 3.33A
• Dimensions: 4.43 x 3.65 x 4.43 inch
• Weight: 2.45 lbs
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hard Coated Polycarbonate
• Housing: Hard Anodized and Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware and Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof, Submersible to 9ft)
• IK10 Compliant (Mechanical Impact Testing)

Includes:
2x XL Pro LED Lights
Mounting Bracket
Wiring Harness

Patterns:

Driving/Combo:  Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot: A longer and narrower 9° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Light Options:

• Baja Designs Squadron XL Pro White / Spot / One Pod Only / CRO 125669 / 500001
• Baja Designs Squadron XL Pro White / Spot Pair With Harness / CRO 125674 / 507801
• Baja Designs Squadron XL Pro White / Driving/Combo / One Pod Only / CRO 125670 / 500003
• Baja Designs Squadron XL Pro White / Driving/Combo / Pair With Harness / CRO 125675 / 507803
• Baja Designs Squadron XL Pro White / Wide Cornering / One Pod Only / CRO 125671 / 500005
• Baja Designs Squadron XL Pro White / Wide Cornering / Pair With Harness / CRO 125676 /  507805

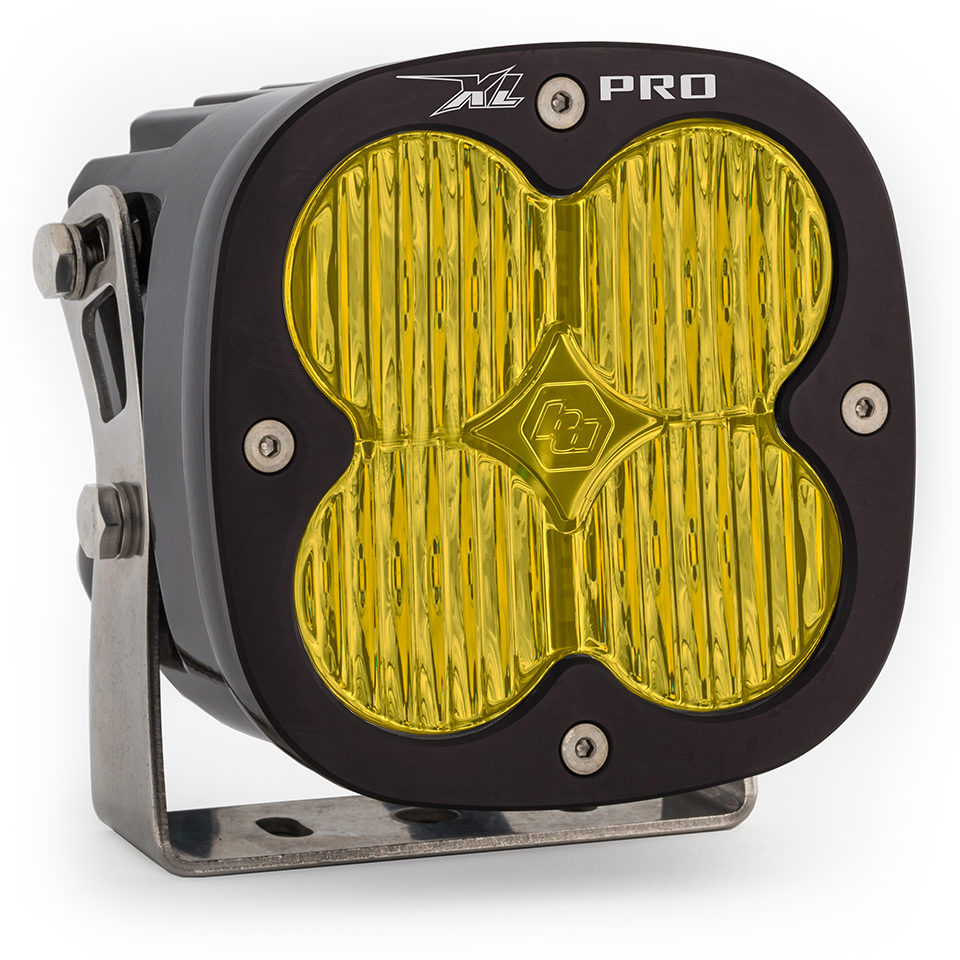

• Baja Designs Squadron XL Pro Amber / Driving/Combo / One Pod Only / CRO 125672 / 500013
• Baja Designs Squadron XL Pro Amber / Driving/Combo / Pair With Harness / CRO 125677 / 507813
• Baja Designs Squadron XL Pro Amber / Wide Cornering / One Pod Only / CRO 125673 / 500015
• Baja Designs Squadron XL Pro Amber / Wide Cornering / Pair With Harness / CRO 125678 / 507815
