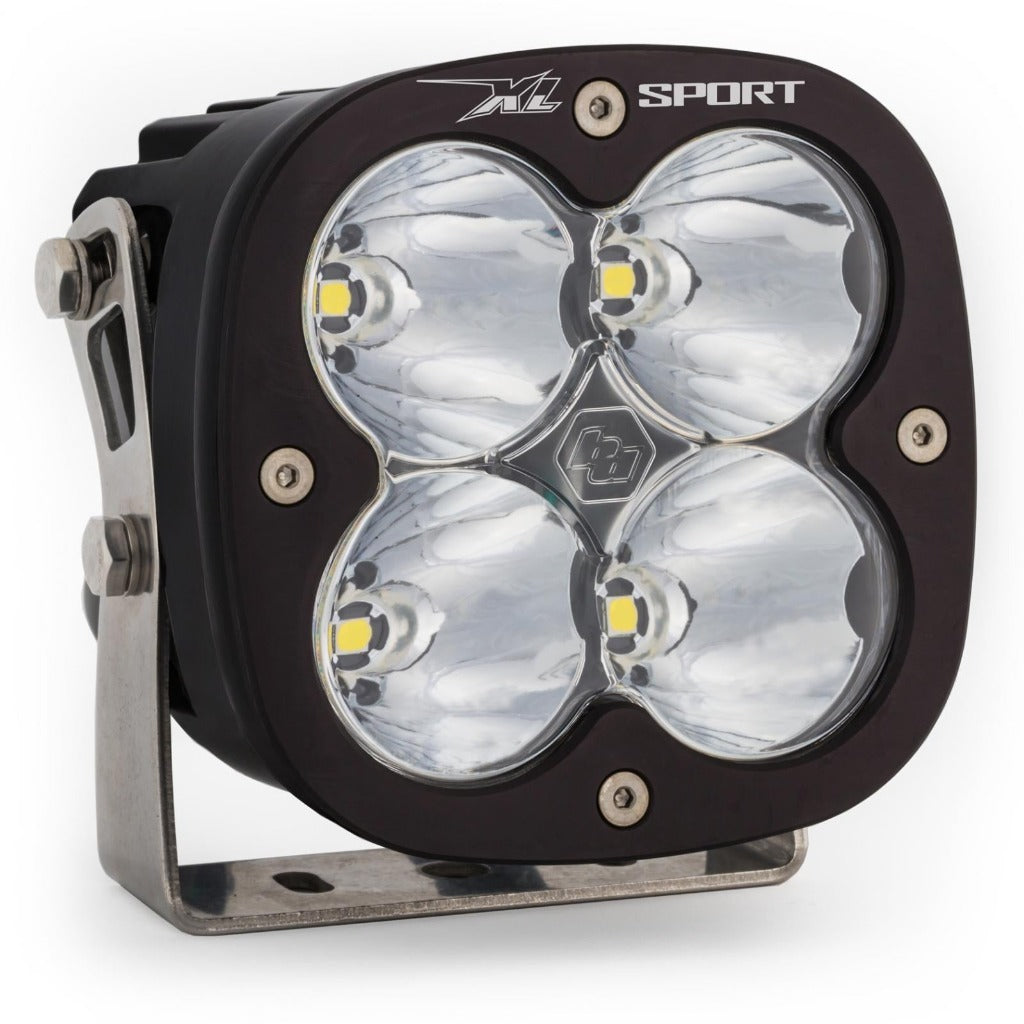

The XL Sport makes it easy to light up your world in style, with the perfect combination of affordability and performance. The XL Sport LED light utilizes our trademarked High Speed Spot reflectors providing for a longer beam pattern. The XL Sport provides the same top of the line performance and aesthetics you expect from BD in an affordable solution. All Baja Designs LEDs are backed by a 30 Day Satisfaction Guarantee & Limited Lifetime Warranty for the ultimate in purchase protection. Note: A Skene dimmer must be purchased separately to enable the high/low feature.
Baja Designs Features:
Satisfactions Guarantee - 30 Day Money Back Guarantee
5000K Daylight - Less Driver Fatigue, Natural Color
Specifications (per light):
Lumens: 3,150 Utilizing 4 LEDs
Wattage/Amps: 26W / 2A
Dimensions: 4.43 x 3.65 x 4.43 inch
Weight: 2.45 lbs
LED Life Expectancy:49,930 Hours
Front Lens:Hard Coated Polycarbonate
Housing:Hard Anodized and Powder Coated Cast Aluminum
Bezel:Billet Machined Aluminum
Hardware and Bracket Material:Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)
One Pod Includes:
XL Sport LED Lights Mounting Bracket
Pair Includes: 2x XL Sport LED Lights Mounting Bracket Wiring Harness
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Light Options:
Baja Designs Squadron XL Sport White / Spot / One Pod Only / CRO125749 / 560001
Baja Designs Squadron XL Sport White / Spot Pair With Harness / CRO125754 / 567801
Baja Designs Squadron XL Sport White / Driving/Combo / One Pod Only / CRO125750 / 560003
Baja Designs Squadron XL Sport White / Driving/Combo / Pair With Harness / CRO125755 / 567803
Baja Designs Squadron XL Sport White / Wide Cornering / One Pod Only / CRO125751 / 560005
Baja Designs Squadron XL Sport White / Wide Cornering / Pair With Harness / CRO125756 / 567805
Baja Designs Squadron XL Sport Amber / Driving/Combo / One Pod Only / CRO 125752 / 560013
Baja Designs Squadron XL Sport Amber / Driving/Combo / Pair With Harness / CRO 125757 / 567813
Baja Designs Squadron XL Sport Amber / Wide Cornering / One Pod Only / CRO 125753 / 560015
Baja Designs Squadron XL Sport Amber / Wide Cornering / Pair With Harness / CRO 125758 / 567815
