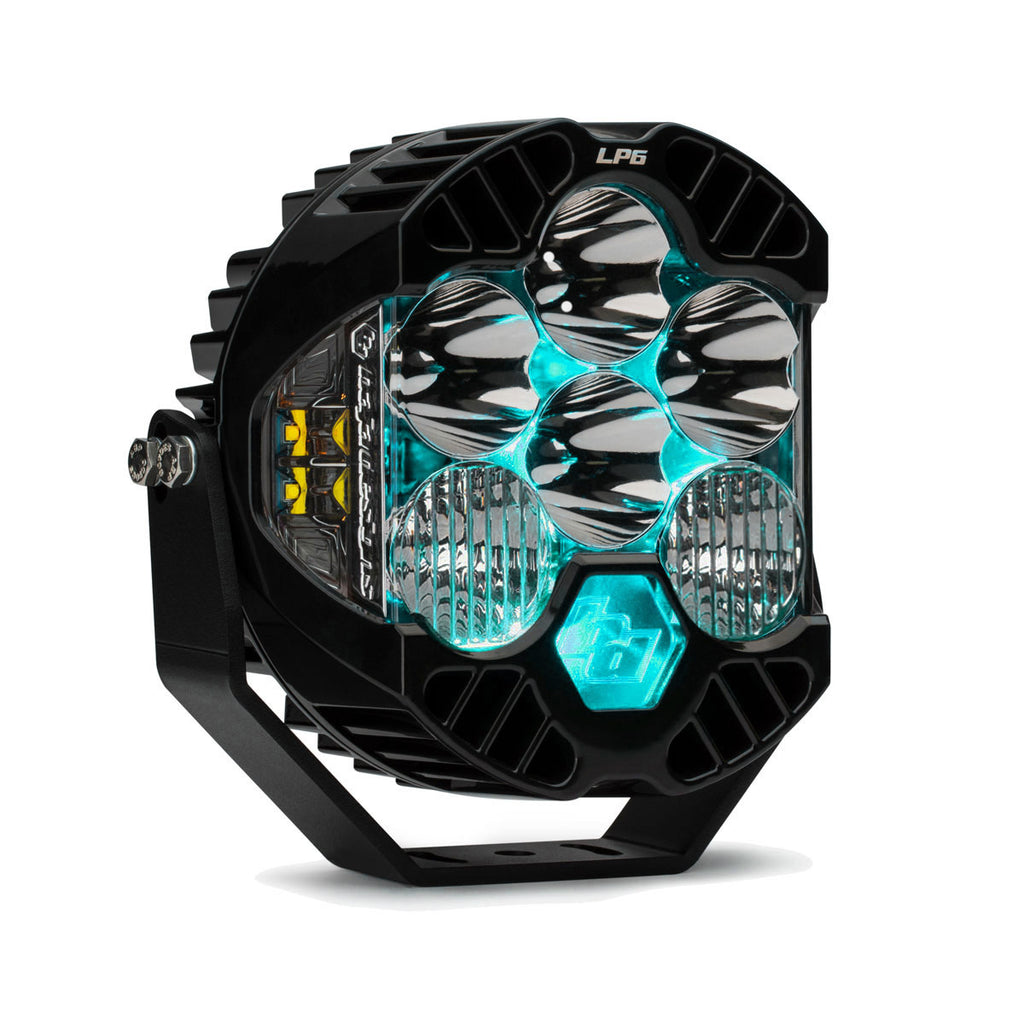

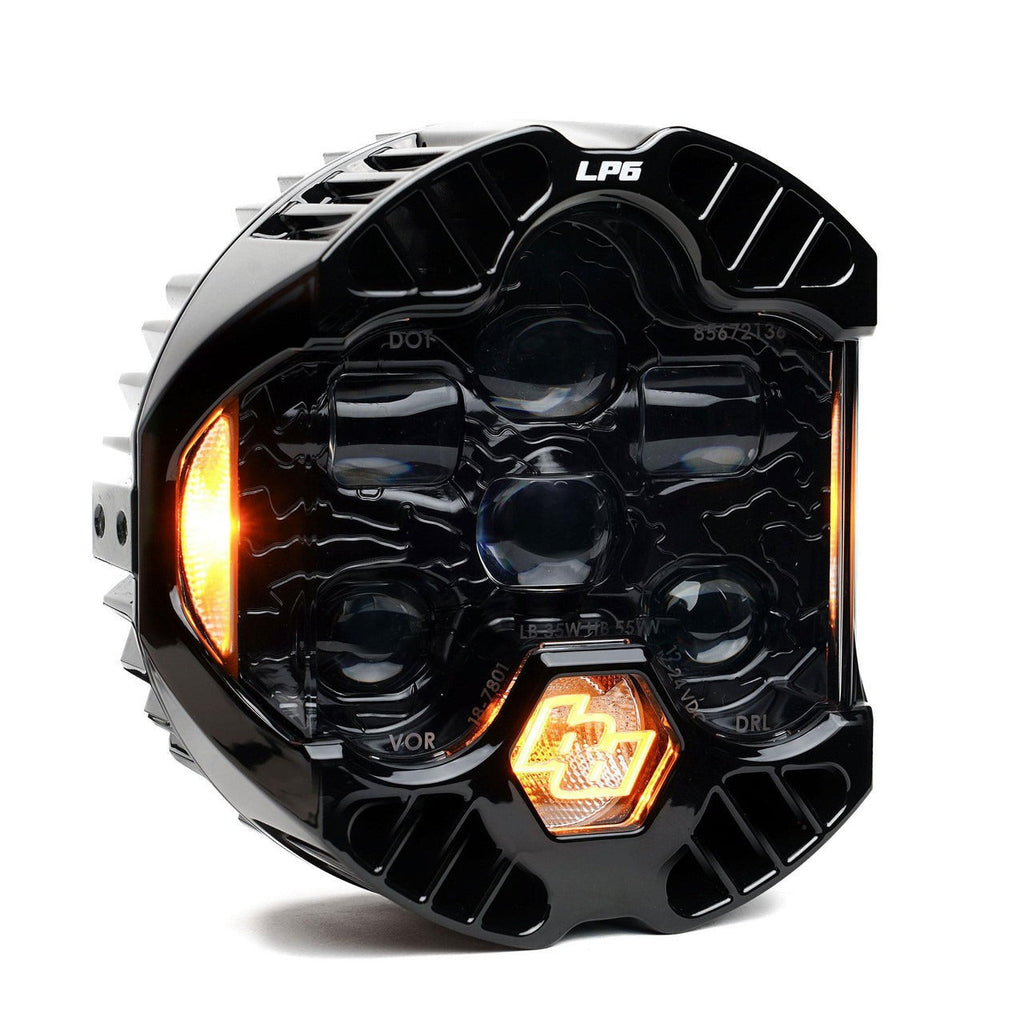

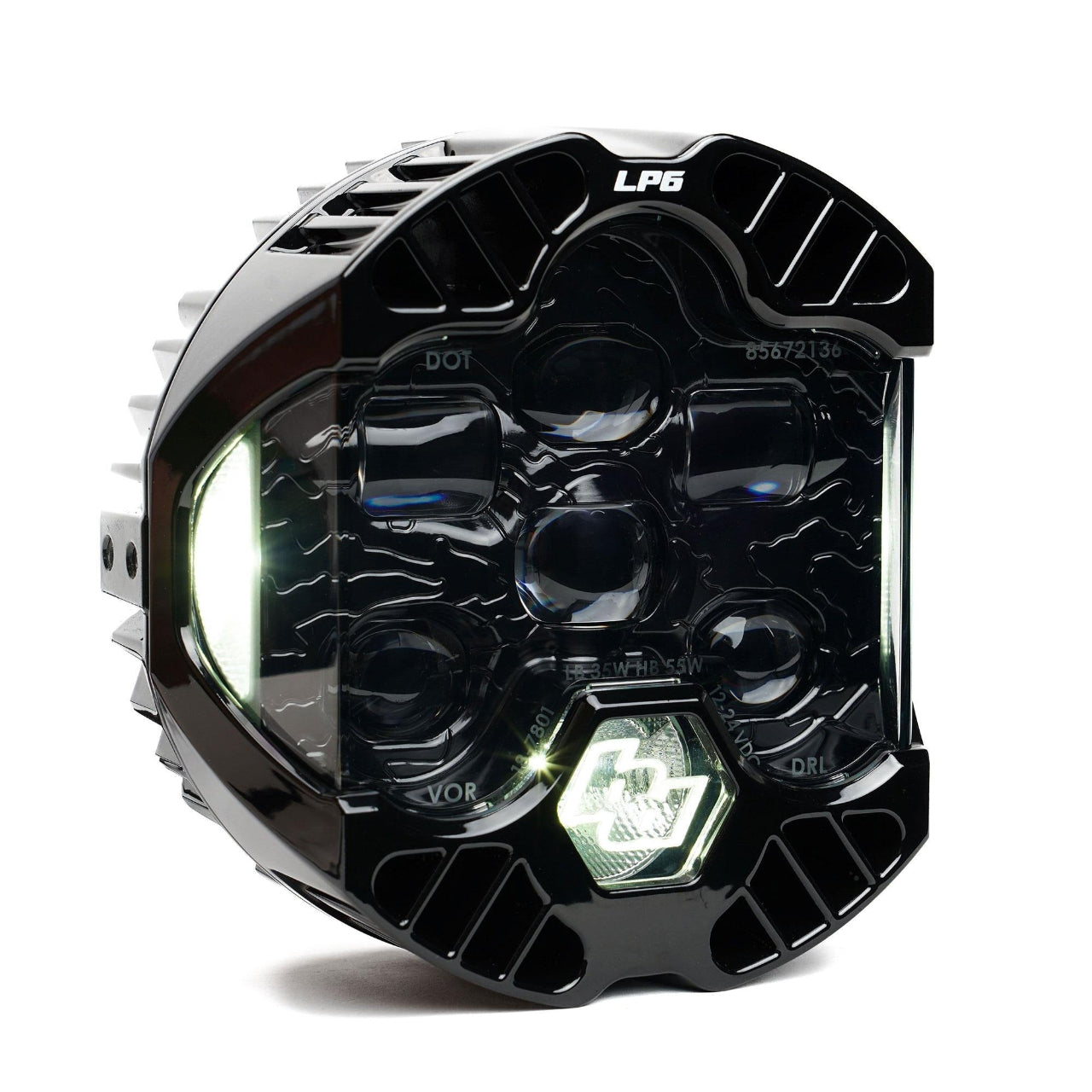

Baja Designs LP6 Pro LED

The LP6 Pro is a 6-inch powerhouse featuring a total of 10,300 lumens and a 200-degree spread of usable LED light. The LP6 features 8,600 forward-projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT). To keep your light performing at its highest potential, the LP6 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance. With an amber day-time running light, low power, and high power mode, the LP6 easily fulfills all your lighting needs.

Choose from a variety of patterns to suit your needs:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zone 3).

Spot: A longer and narrower 8-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5).

• Satisfaction Guarantee – 30-Day Money Back Guarantee
• Limited Lifetime Warranty – Complete Purchase Protection
• uService – Replaceable Lenses And Optics
• ClearView – All The Light, Right Where You Need It
• MoistureBlock – Waterproof, Rain Proof, Submersible
• CopperDrive – Only LED Driven At 100 Percent
• 5000K Daylight – Less Driver Fatigue, Natural Color

Baja Designs Features:

• Satisfactions Guarantee - 30 Day Money Back Guarantee
• Limited Lifetime Warranty - Complete Purchase Protection
• uService - Replaceable Lenses And Optics
• ClearView - All The Light, Right Where You Need It.
• MoistureBlock - Waterproof, Rain Proof, Submersible
• CopperDrive - Only LED Driven At 100 percent
• 5000K Daylight - Less Driver Fatigue, Natural Color

Specifications:

• Forward Projecting Lumens: 8,600 Utilizing 6 LEDs
• Forward Projecting Wattage/Amps: 90W / 6.5A
• IPT Lumens: 1,700 Utilizing 4 LEDs
• IPT Wattage/Amps: 15W / 1.0A
• Dimensions: 7.5 inch Height / 6.5 inch Width / 3.2 inch Depth
• Weight: 4.2lbs
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hardcoated Polycarbonate
• Housing: Hard Anodized Machined Aluminum
• Bezel: Billet Machined Aluminum
• Hardware and Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof up to 9ft and Pressure Washable)
• IK10 Compliant (Mechanical Impact Testing)

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42 degree) and the spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

High Speed Spot: A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)

Harness Options included if you choose "Pair" bundle. The Baja Designs LP9 / LP6 Pro‘_Harness Includes:

• Wiring harness with plug and play Deutsch style connectors
• Built in splitter to power two LP9 or LP6 Lights
• Large automotive style ring terminals
• 3-position, 30amp DC Rated, DPDT, On-Off-On Switch to operate high and low beam independently
• Extra wire lead with splice connector to operate amber daytime running light (DRL) ‘_
• 20A/40A Relay & 30 amp inline fuse
• 12 foot length for battery to instrument cluster
• 15 foot length for instrument cluster to light mounting location

This harness is all you will need to in order to get full versatility and functionality from your LP9 or LP6 lights! SKU: 640172

Light Options:

• Baja Designs LP6 Pro LED White / Spot CRO 125506 / 270001
• Baja Designs LP6 Pro LED White / Driving/Combo CRO 125507  270003
• Baja Designs LP6 Pro LED Amber / Spot  / CRO 125508 / 270011
• Baja Designs LP6 Pro LED Amber / Driving/Combo  / CRO 125509 / 270013
