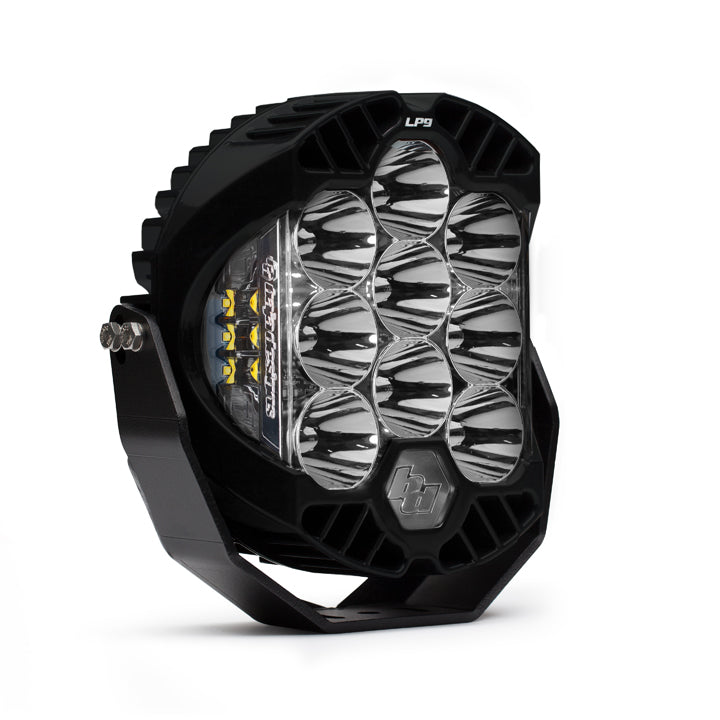

The LP9 Sport is perfect for enthusiasts that want a full size light with modern styling and advanced features. The Sport model still includes all of the technology that makes the LP9 series so popular, from Direct Ducted Cooling - that keeps your light cool under stress - to the Integrated Peripheral Technology (IPT), which produces an incredible 200° spread of usable light.
The LP9 Sport utilizes 9 forward projecting LEDS to produce 6,500 Lumens at 61 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 2,280 lumens at 21 watts.
As with all of our LED offerings, this light features uService technology - allowing customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.
Note: The LP9 Sport is simple on/off (no hi/lo) and does not include the amber backlit feature. These features are available on the LP9 Pro and Racer Editions.
LP9 Patent: 5,504,603
Baja Designs Features:
- Satisfactions Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
Specifications:
- Forward Projecting Lumens: 6,500 Utilizing 9 LEDs
- Forward Projecting Wattage/Amps: 21W / 1.52A
- IPT Lumens: 2,280 Utilizing 6 LEDs
- IPT Wattage/Amps: 21W / 1.52A
- Dimensions: 8" Diameter / 3.25 inch Depth
- Weight: 6.5bs
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hardcoated Polycarbonate
- Housing: Hard Anodized Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42 degree) and the spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
High Speed Spot: A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
Light Options:
- Baja Designs LP9 Sport LED White / Spot / One Pod Only / CRO 125516 / 350001
- Baja Designs LP9 Sport LED White / Spot / Pair With Harness / CRO 125964
- Baja Designs LP9 Sport LED White / Driving/Combo / One Pod Only / CRO 125517 / 350003
- Baja Designs LP9 Sport LED White / Driving/Combo / Pair With Harness / CRO 125965
- Baja Designs LP9 Sport LED Amber / Spot / One Pod Only / CRO 125518 / 350011
- Baja Designs LP9 Sport LED Amber / Spot / Pair With Harness / CRO 125966
- Baja Designs LP9 Sport LED Amber / Driving/Combo / One Pod Only / CRO 125519 / 350013
- Baja Designs LP9 Sport LED Amber / Driving/Combo / Pair With Harness / CRO 125967
