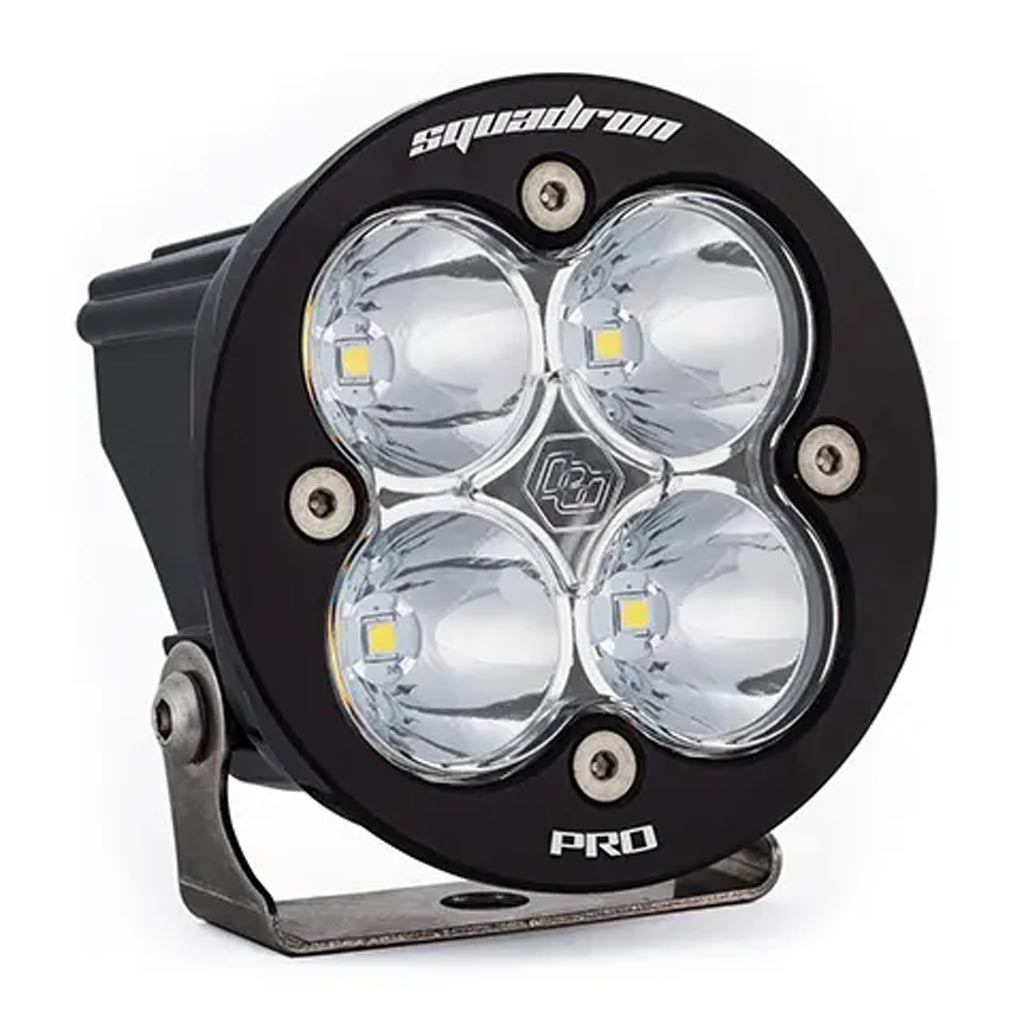

Baja Designs Squadron-R Pro

Enjoy 4,900 lumens (4300 on Amber) utilizing 4 Cree LEDs! The Squadron-R Pro’s light weight and powerful capabilities make it the ideal companion for all of your late night off-roading adventures! Relish high-performance and durability with nearly 50,000 hours of auxiliary LED light, optimized for a more traditional LED experience and aftermarket bumper featuring a 4” round hole. As always, Baja Designs offers a 30 Day Satisfaction Guarantee & Limited Lifetime Warranty.

NOTE When Amber is selected Net Lumens is 4,300 Each light

Baja Designs Features:

• Satisfactions Guarantee  - 30 Day Money Back Guarantee
• Limited Lifetime Warranty - Complete Purchase Protection
• uService - Replaceable Lenses And Optics
• ClearView - All The Light, Right Where You Need It.
• MoistureBlock - Waterproof, Rain Proof, Submersible
• CopperDrive - Only LED Driven At 100 percent
• 5000K Daylight - Less Driver Fatigue, Natural Color

Specifications (per light):

• Lumens: 4,900 Utilizing 4 Cree XP-L LEDs
• Wattage/Amps: 40W / 3.33A
• Dimensions: 3.5 x 2.77 x 3.5 inch
• Weight: 12 ounces
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hard Coated Polycarbonate
• Housing: Hard Anodized and Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware and Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof, Submersible to 9ft)
• IK10 Compliant (Mechanical Impact Testing)

One Pod Includes:
Squadron-R Pro LED Light
Mounting Bracket

Pair Includes:
2x Squadron Pro LED Lights
Mounting Bracket
Wiring Harness

Patterns:

Driving/Combo:  Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

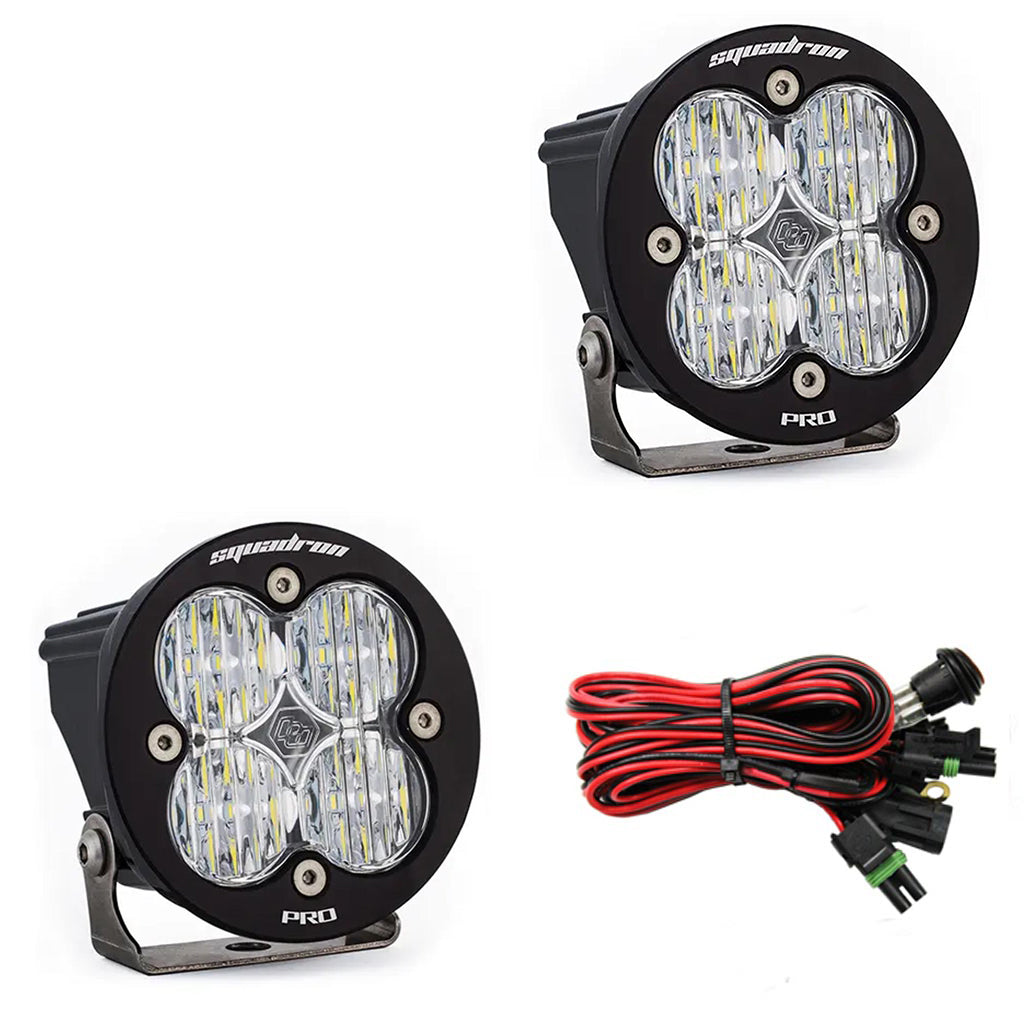

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

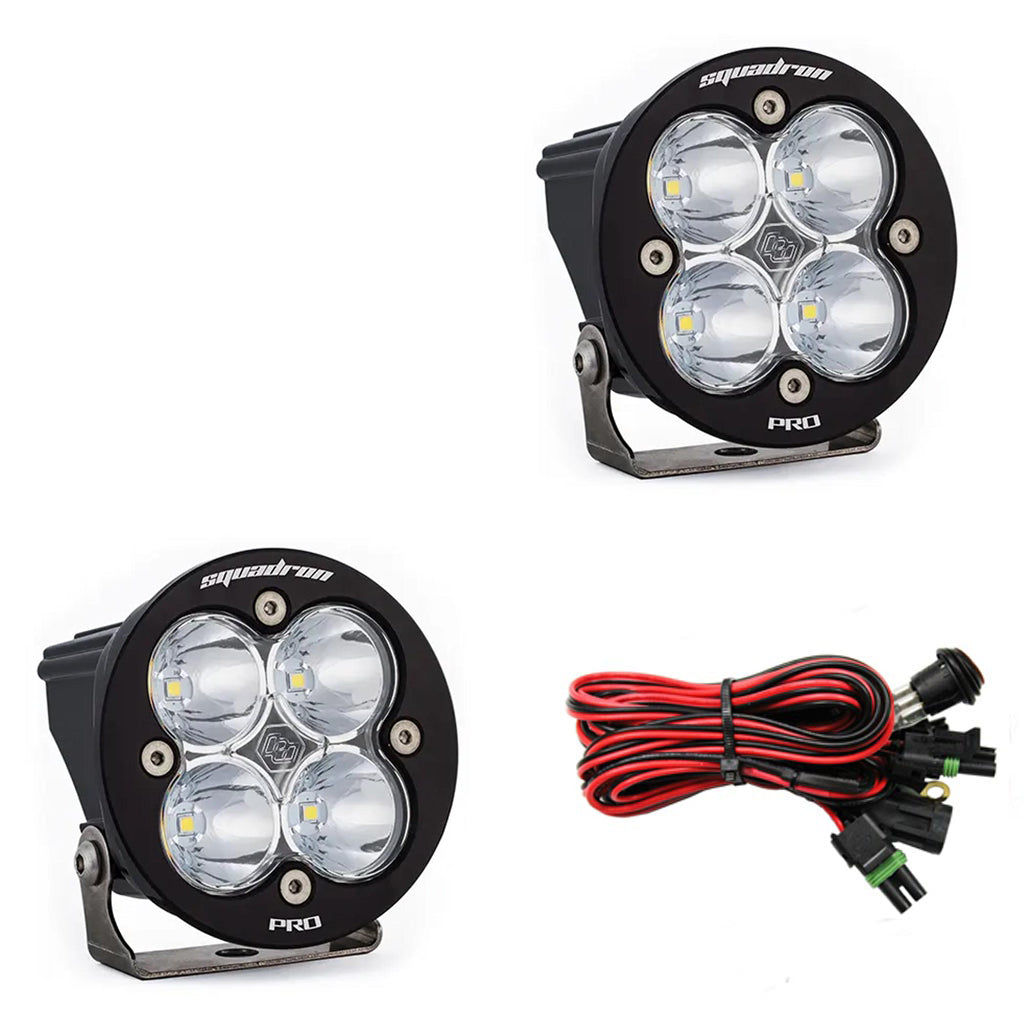

Spot: A longer and narrower 9° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft.  This pattern is not suitable for driving. (Lighting Zone 7)

Light Options:

• Baja Designs Squadron R-Pro White / Spot / One Pod Only CRO 130552 / 590001
• Baja Designs Squadron R-Pro White / Spot / Pair with Harness / CRO 130553 / 597801
• Baja Designs Squadron R-Pro White / Driving/Combo / One Pod Only / CRO 130554 / 590003
• Baja Designs Squadron R-Pro White / Driving/Combo / Pair with Harness / CRO 130555 / 597803
• Baja Designs Squadron R-Pro White / Wide Cornering / One Pod Only / CRO 130556 / 590005
• Baja Designs Squadron R-Pro White / Wide Cornering / Pair with Harness / CRO 130557 / 597805
• Baja Designs Squadron R-Pro White / Work/Scene / One Pod Only / CRO 130558 / 590006
• Baja Designs Squadron R-Pro White / Work/Scene / Pair With Harness / CRO 130559 / 597806
• Baja Designs Squadron R-Pro Amber / Driving/Combo / One Pod Only / CRO 130560 / 590013

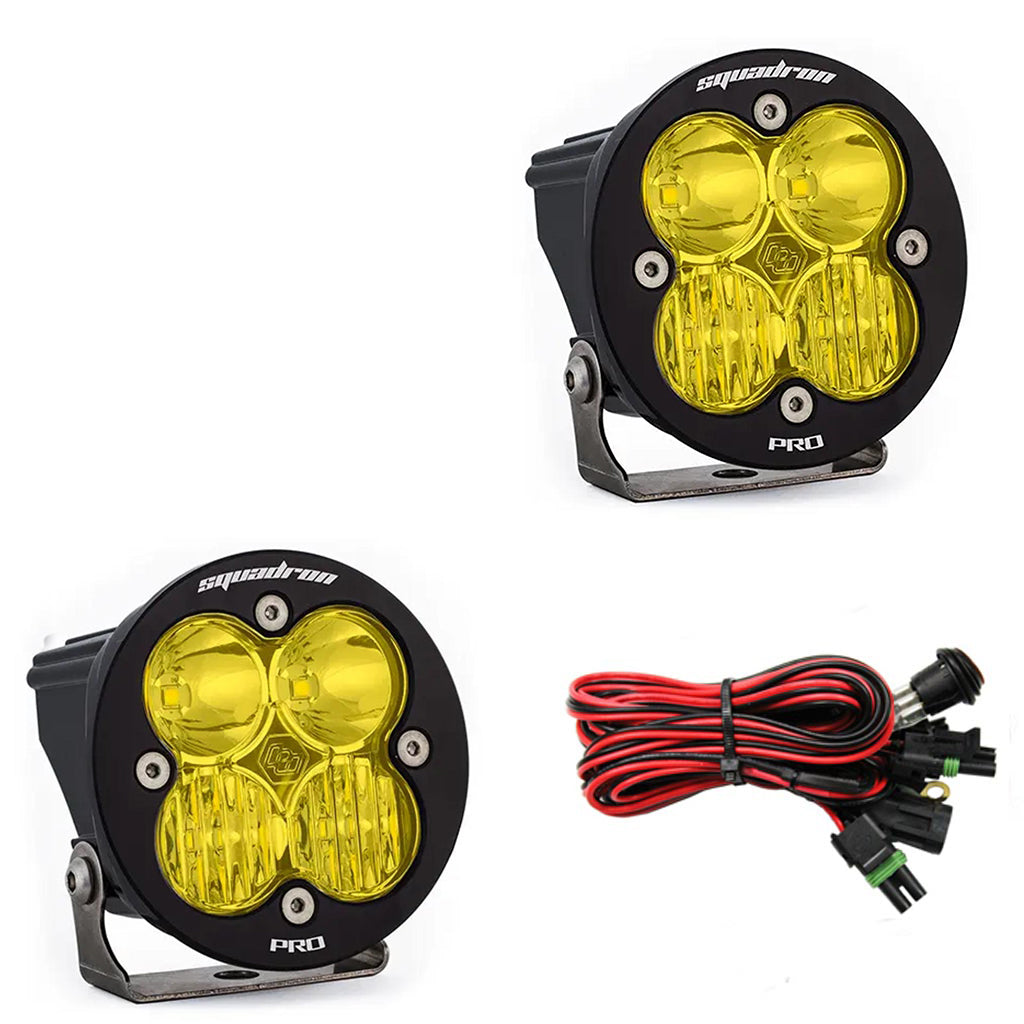

• Baja Designs Squadron R-Pro Amber / Driving/Combo / Pair with Harness / CRO 130561 / 597813
• Baja Designs Squadron R-Pro Amber / Wide Cornering / Single Pod Only / CRO 130562 / 590015

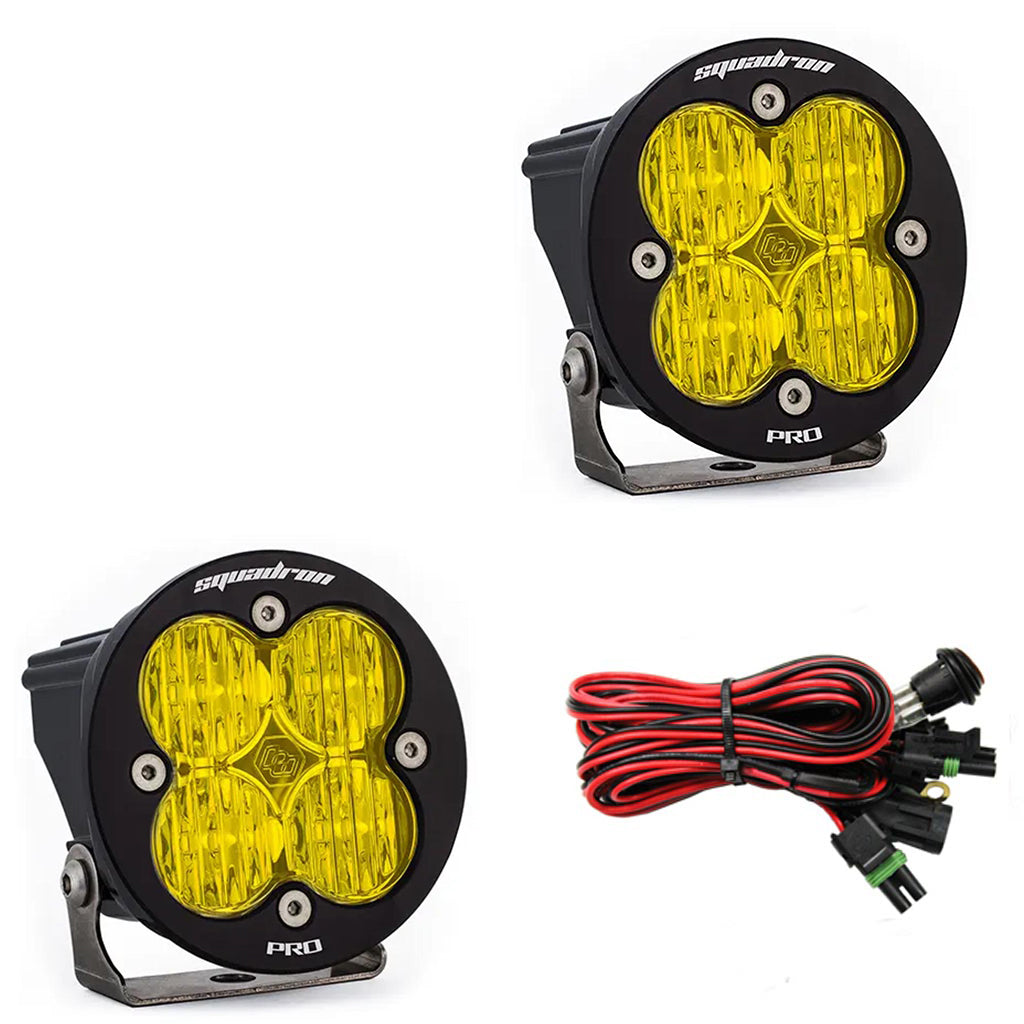

• Baja Designs Squadron R-Pro Amber / Wide Cornering / Pair with Harness / CRO 130563 / 597815
