Banks Power Pressure Sensor Remote Mount Kit for High-Temperature/Drive Pressure Measurements

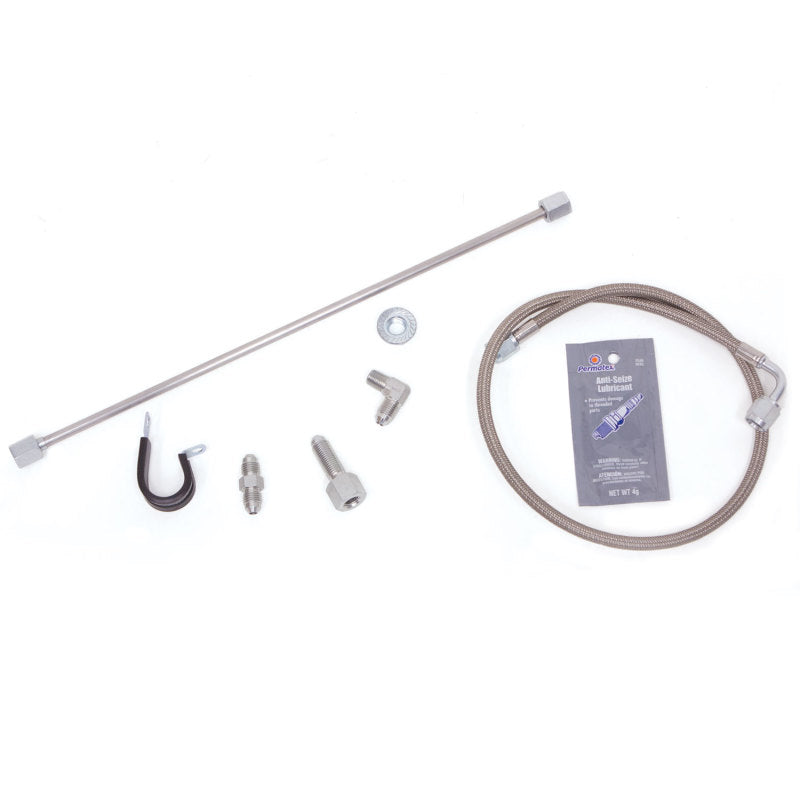

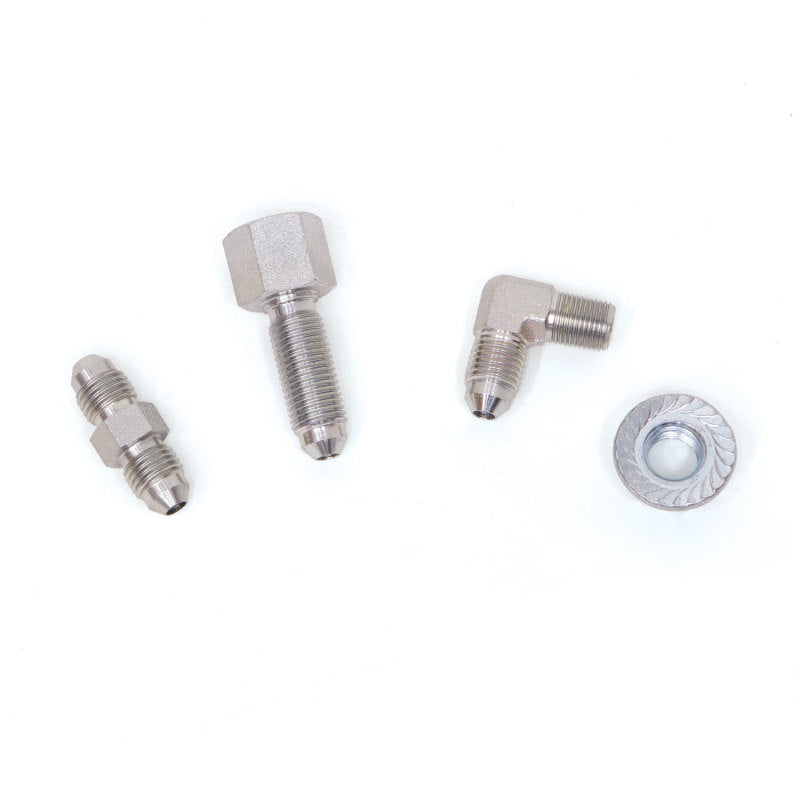

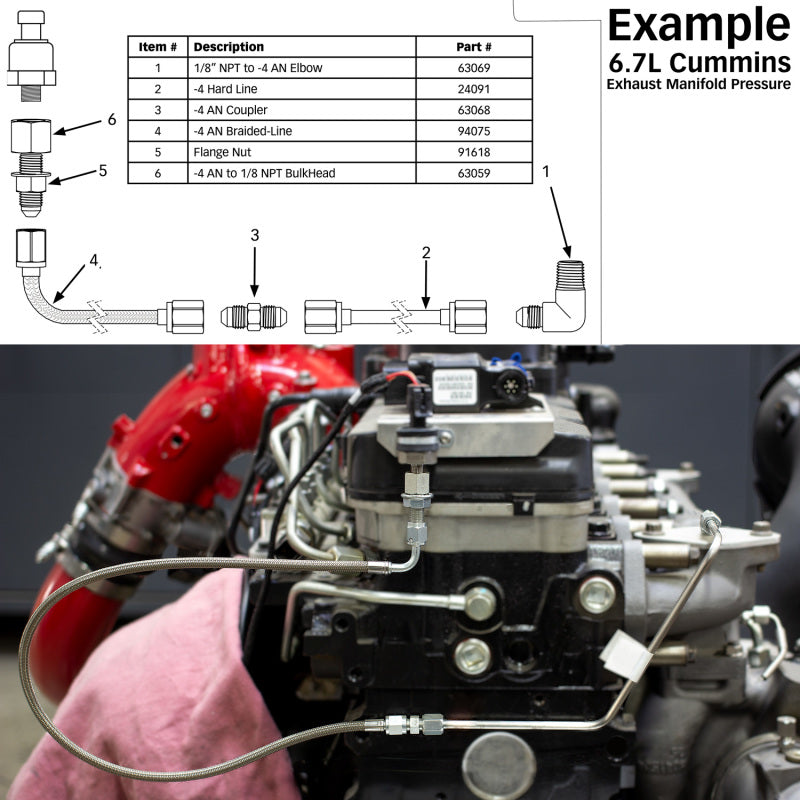

Obtain air pressure readings without destroying your sensor(s). In some situations it is better to mount sensors remotely to isolate readings while protecting sensors from other elements which may cause premature failure. Mounting the sensor remotely allows safer reading and longer sensor life, and improved accuracy.For high-temp situations, such as exhaust manifold temperature, mounting a sensor directly to the exhaust manifold will result in sensor failure. Mounting the sensor remotely allows safer reading and longer sensor life, and improved accuracy.This universal kit is used to obtain pressure readings from any engine component where temperatures do not exceed 220° F. A remote mount kit helps to isolate the temperature, ensure longevity, and improve the accuracy of the sensor. Hardware is included to bulkhead mount the pressure sensor or mount it using a P-Clamp.Note: For pressure measurements of air with temperatures exceeding 220° F, such as exhaust gas temperature and compressor out/intercooler inlet temperatures, we recommend the 66422 Pressure Sensor Remote Mount Kit, for High-Temperature/EGT Pressure Measurements.Works with Banks pressure sensors, and both 4-channel and 5-channel Analog or Frequency modules.Includes all necessary hardware.
