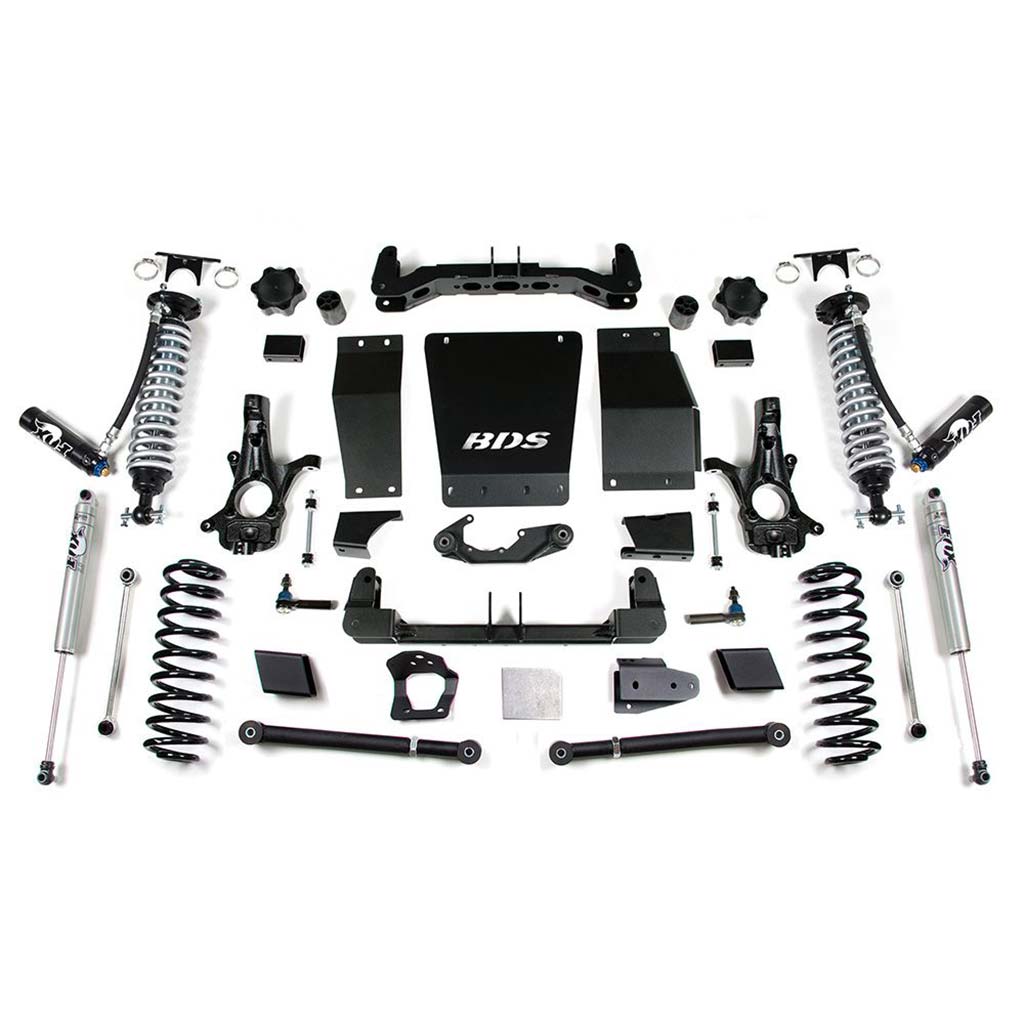

This BDS 731F 6 inch suspension lift kit for the Chevy Suburban 1500 / Tahoe models is designed to provide your vehicle with lift as well as awesome performance benefits. Expect high quality ride performance on and off-road with help form the Fox 2.5 Factory Series Remote Reservoir Coilovers available with the optional DSC (dual speed compression) adjustment. These 2.5 coilovers used hand in hand with BDS' high clearance system corrects suspension, steering and driveline geometry, providing unmatched quality and performance. In the front end of this kit BDS utilizes a pair of 1/4" steel high clearance crossmembers, replacement ductile iron steering knuckles and multipoint differential relocation system, crating a solid subframe. Along with a 3 piece skid plate this adds protection of vital components. Lastly the front end of this kit is rounded out with CV spacers, heavy duty tie rod end links, longer sway bar links, and brake line brackets.
The rear end of this system includes a pair of 5" coil spacers, designed to level out the stance. The rear track bar is relocated with a heavy duty bracket and a support brace is included re-centering the rear axle, while longer sway bar end links and bump stop extensions are supplied, optimizing performance. Lastly a pair of Fox 2.0 IFP Performance gas shocks are included in the rear, improving rear dampening in harsh off-road conditions while providing smooth performance on the roads.

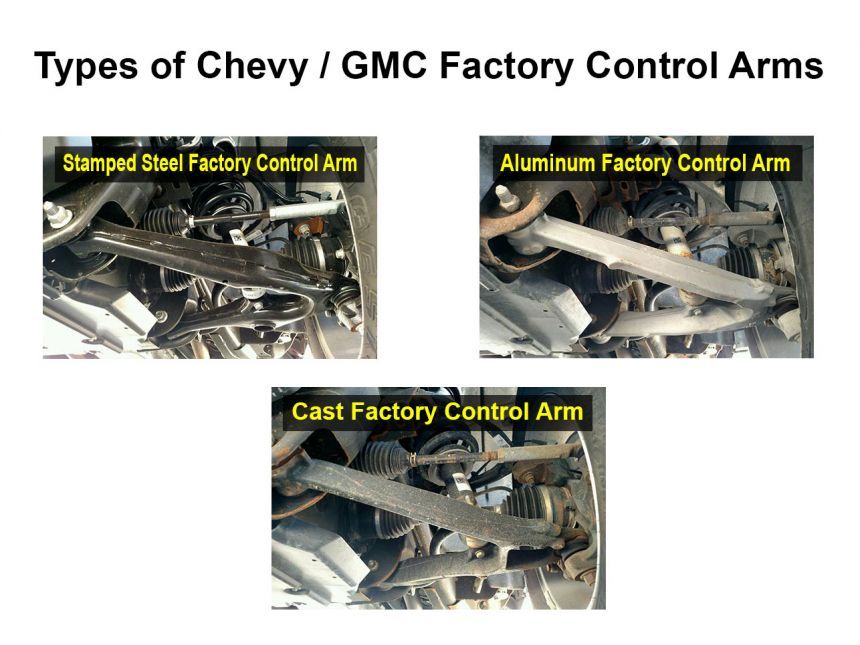

BDS recommends up to 35x12.50 tires to be installed with this kit. This kit is compatible with trucks equipped with factory cast steel, factory stamped steel and factory aluminum control arms.
Features and Benefits:
- Allows use of up to 35 inch diameter tires
- Fox 2.5 Remote Reservoir Coil-Overs (optional DSC Adjustable)
- Improved ride quality and suspension performance
- Heavy Duty Cast Iron Steering Knuckles
- One-Piece High Clearance Front & Rear Crossmembers
- Belly Pan Skip Plate Included
- 6 inches of front lift / 5 inches of rear lift
- Rear Fox 2.0 Performance Shocks included
- Rear coil spring spacers maintain a factory ride
- Estimated Install Time: 8 hours +/-
- No Fine Print Lifetime Warranty
- Best Quality and Engineering in the Industry
- Proudly Made in the USA
Tire & Wheel Combinations:
- 33x12.50" tires w/17x8" wheels and 4.5" backspacing
- 34x12.50" tires w/18x9" wheels and 5" backspacing
- 35x12.50" tires w/20x9" wheels and 5.75" backspacing
Premium Quality, Lifetime Warranty and Protection
BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
