If you're looking to go night riding look no further, our Baja Designs drop-in replacement headlight kit is a major upgrade from stock and features a rugged design. This headlight kit was designed with ample adjustability and features a significant amount of vertical and horizontal spread for ultimate trail coverage.
This specific model utilizes our XL Pro which produces 4600 lumens and features a 20 percent dimming feature. Installation on this kit is simple, with only a simple pin of the connectors, and comes with all necessary hardwear.

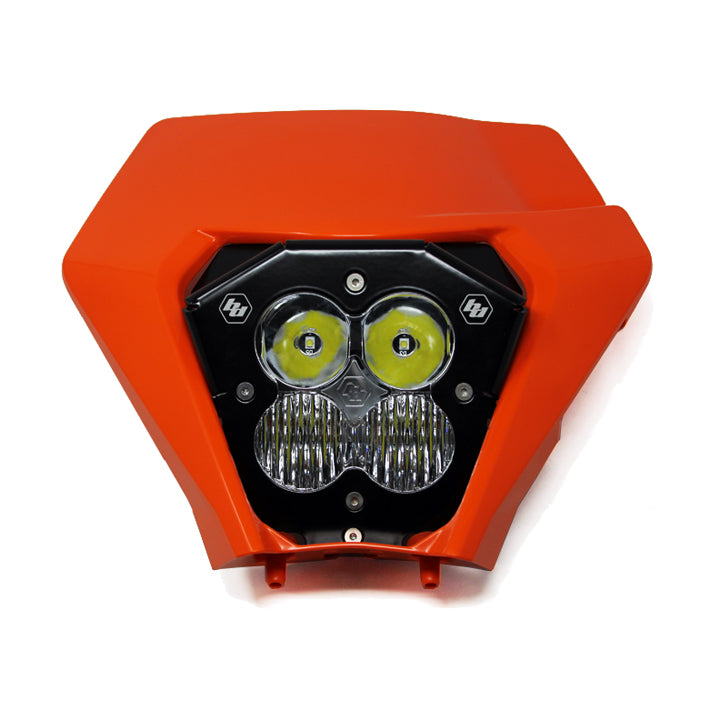

This kit comes preinstalled into a factory KTM Headlight mask (20-On). We offer this kit for the bikes that didn't come equipped with a headlight shell or for customers who don't want to disassemble their factory unit. This kit will require our harness to work with the factory Hi/Lo switch.
- Satisfaction Guarantee 30-Day Money Back Guarantee
- Limited Lifetime Warranty Complete Purchase Protection
- uService Replaceable Lenses And Optics
- ClearView All The Light, Right Where You Need It
- MoistureBlock Waterproof, Rain Proof, Submersible
- CopperDrive Only LED Driven At 100 Percent
- 5000K Daylight Less Driver Fatigue, Natural Color
Warnings and Cautions:
This kit will require the use of our 129016 wiring harness to use the Hi/Lo feature.
Baja Designs Features:
- Satisfactions Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 percent
5000K Daylight - Less Driver Fatigue, Natural Color Specifications:
- Lumens: 4900 Utilizing 4 Cree LEDs
- Wattage/Amps: 40W / 2.9A
- Dimensions: 4.43 inch x 3.65 inch x 4.43 inch
- Weight: 2.45 lbs
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hardcoated Polycarbonate
- Housing: Hard Anodized and Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Includes:
- XL Pro, LED KTM Kit With 2017-2019 Headlight Shell
- AC/DC Power convertor
Patterns:
High Speed Spot: A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
