Add On Blue LED 8-Switch Panel for 09-18 Jeep Wrangler JK (for SourceSE) -
Add On Amber LED 8-Switch Panel for 09-18 Jeep Wrangler JK (for SourceSE) - 860865
Click to zoom in

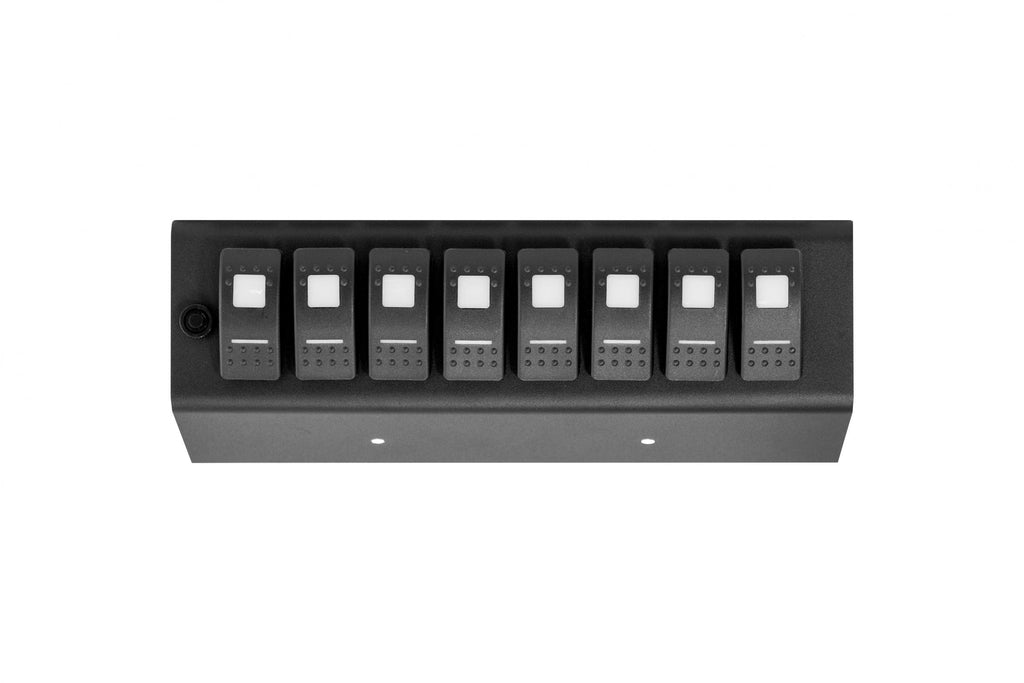

Add On Blue LED 8-Switch Panel for 09-18 Jeep Wrangler JK (for SourceSE)

JK Add On Switch Panel For 8 Circuit SE System for 2009-2018 Wrangler JK with Blue switches. This is an Add On Only to be added...
sPOD
860870
Switches/Panels/Wiring
860870
$350.00
Snap Logo Lease for as low as $/week Learn More

Add On Blue LED 8-Switch Panel for 09-18 Jeep Wrangler JK (for SourceSE)

JK Add On Switch Panel For 8 Circuit SE System for 2009-2018 Wrangler JK with Blue switches. This is an Add On Only to be added to SE Touchscreen system (8-700-TSB-JK) to allow Touchscreen and hard switch panel option. Not designed to be used without SourceSE (8 Circuit Source).

The system utilizes automotive grade approved high-power, high-temp, ultra-reliable components with a maximum 100 amp capacity! The sPOD SourceSE is a fully programmable digital CAN-Bus controlled system utilizing state-of-the-art technologies. OEM vehicle specific simple installation hardware, engineered and 100 percent manufactured in the United States.

Switch Panel Features:

  • Dual lit (LED indicator lights, On position and pilot light) in Blue (All switches will be one color)
  • The new switch panel has 8 switches. This panel uses an Ethernet cable that interfaces with the Source with an RJ-45 plug on both ends. Standard cable length will be 10 feet.
  • Each switch is programmable for Strobe or Flash (by a sequence of On/Off/On quickly)
  • Automatic system shut down when the panel is unplugged
  • Lower pilot light has an independent power control push button for full operator control
  • Switches are Carling Technologies Contura series with an IP67 rating (marine/heavy equipment)
  • Switch Panel housing is Not plastic but rather, an aluminum formed and welded design to match the interior of the Jeep JK (2009-2015) with specific mounting hardware
  • Switch panel can be daisy-chained for remote operations (EG: one panel in cab and one panel in far back of truck) can easily add up to 10 switch panels. Options to mix and match with the Touchscreen panels as well.
  • Two ports available integrated into the CAN-Bus controller.

Measurements

Product Notes: Must have 8 Circuit SE Source for JK
Capacity: 100 AMP
Battery Cable Length: 84 Inch
Circuit Breaker Included: 50 AMP
Switch Illumination: Dual LED
Legends Included: No
Built in Bluetooth: No
Switch Color: Blue
Material: Aluminum Formed
Mount Location: Between visors on windshied frame

Measurements

Product Notes: Must have 8 Circuit SE Source for JK
Capacity: 100 AMP
Battery Cable Length: 84 Inch
Circuit Breaker Included: 50 AMP
Switch Illumination: Dual LED
Legends Included: No
Built in Bluetooth: No
Switch Color: Blue
Material: Aluminum Formed
Mount Location: Between visors on windshied frame
