Baja Designs Squadron Sport Behind Grill Kit fits 21-On Ford Raptor Baja Designs - 448061

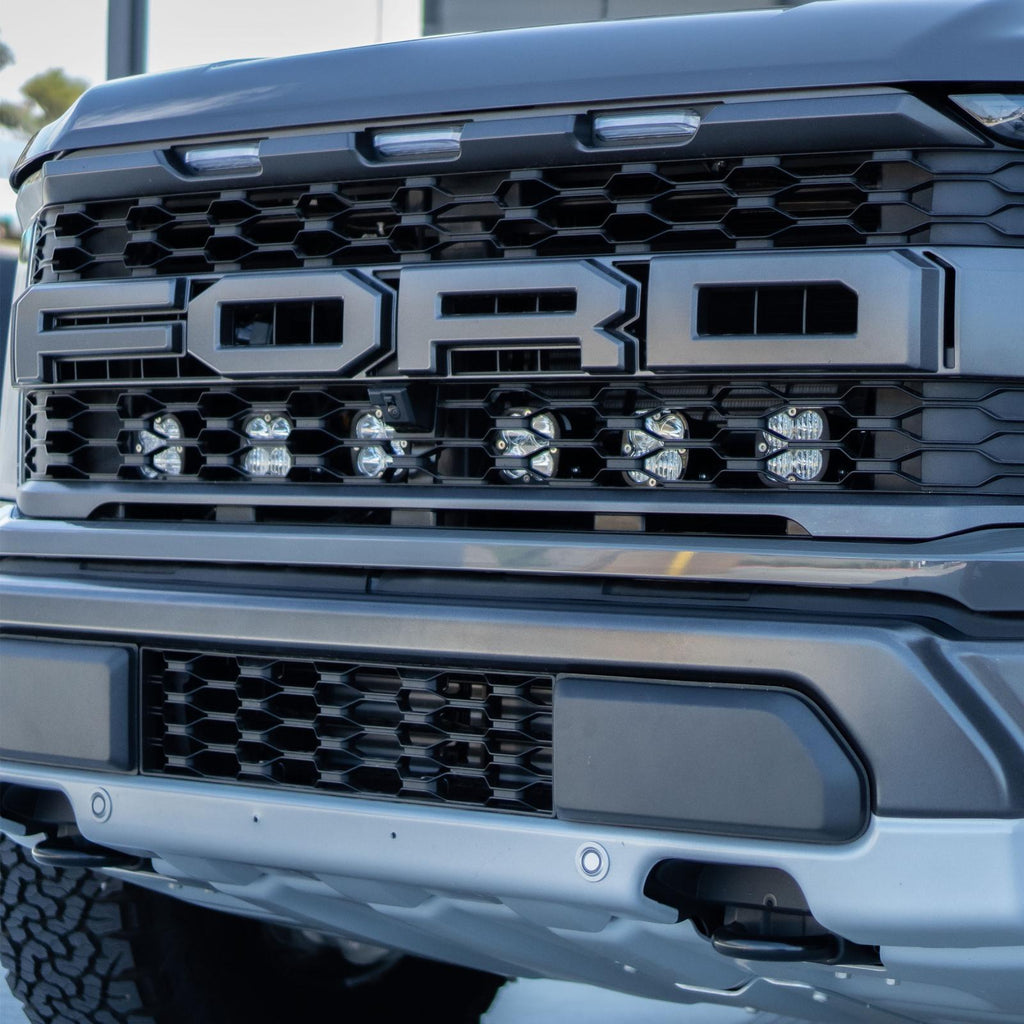

Baja Designs' 2021 Ford Raptor Behind the Grill kits were designed with both functionality and visual appeal in mind. This kit offers six Squadron Sports, mounting brackets, and hardware.

To give these kits and easier wiring installation each kit includes an up-fitter harness that will allow you to tap your lights into the factory up-fitter switches.

Baja Designs Features:

• Satisfactions Guarantee: 30 Day Money Back Guarantee
• Limited Lifetime Warranty: Complete Purchase Protection
• uService: Replaceable Lenses And Optics
• ClearView: All The Light, Right Where You Need It.
• MoistureBlock Waterproof, Rain Proof, Submersible
• CopperDrive: Only LED Driven At 100 percent
• 5000K Daylight: Less Driver Fatigue, Natural Color

Specifications (per light):

• Lumens: 3,150 Utilizing 4LEDs
• Wattage/Amps: 26W / 2A
• Dimensions: 3.07 Inch x 2.77 Inch x 3.07 Inch
• Weight: 12 ounces
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hard Coated Polycarbonate
• Housing: Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware and Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof, Submersible to 9ft)
• IK10 Compliant (Mechanical Impact Testing)

Applications:

2021 Ford Raptor

Included:

• x2 Squadron Sport in Wide Cornering
• x2 Squadron Sport in Driving Combo
• x2 Squadron Sport in Spot
• x1 Upfitter harness
• x2 Mounting Brackets
• All necessary hardware

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 Degree) and spot (9 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)

Spot: A longer and narrower 9 Degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
