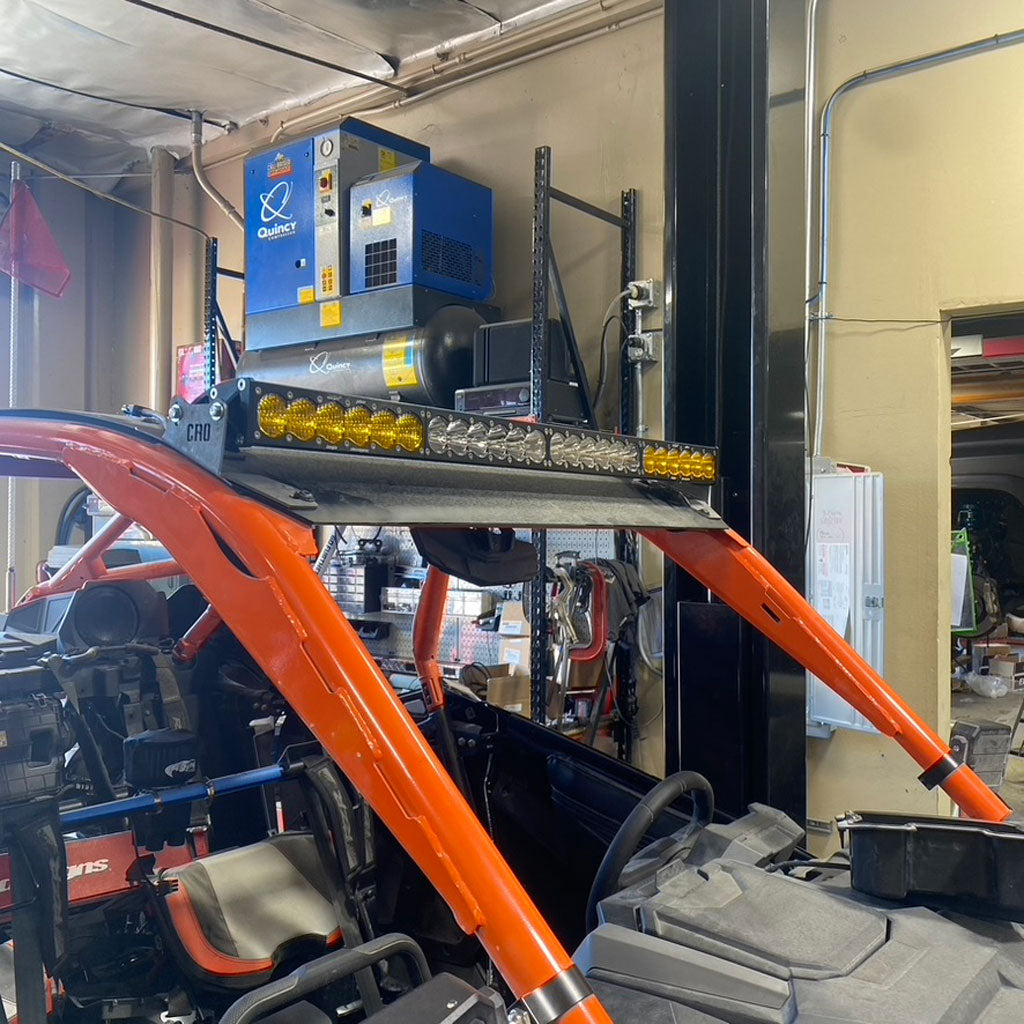

RZR PRO R Light Bar Brackets made for the Onx6 Baja Designs 40" Light Bar
RZR PRO R Light Bar Brackets made for the Onx6 Baja Designs 40" Light Bar
RZR PRO R Light Bar Brackets made for the Onx6 Baja Designs 40" Light Bar
Click to zoom in

RZR PRO R Light Bar Brackets made for the Onx6 Baja Designs 40" Light Bar

Precision laser cut and shaped to bolt on your RZR Pro R Front 2 Roof Mounting Bolts.  Includes:  2 Black Powder Coated Light Brackets that fit...
134926
$59.95
Snap Logo Lease for as low as $/week Learn More

RZR PRO R Light Bar Brackets made for the Onx6 Baja Designs 40" Light Bar

Precision laser cut and shaped to bolt on your RZR Pro R Front 2 Roof Mounting Bolts.

Includes:

  • 2 Black Powder Coated Light Brackets that fit factory holes (no drilling req.)
  • 2- 5/16 x 18 x 1.25" grade 5 Bolts for front of mounts.
  • 2  5/16 washers grade 5
  • 2- 5/16 nylock nuts grade 5
  • NOTE: We use the factory roof bolts in the rear holes of these mounts on each side.

NOTE: This set does not fit the XP model.. That requires a different bolt pattern.


Get Maximum lighting using a Light up the Night with one of the best light bars available for your off-road Vehicle.

 Make it a COMBO! Buy any 40" Onx6 Light bar from us and get brackets for 50% OFF!

Baja Designs Light Bar that fits these brackets:

The NEW OnX6+ Arc Series is the perfect combination of performance and aesthetics. Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar. At an impressive 39,910 lumens, the brightest just got up to 69% brighter.  The OnX6+ LED light bar also integrates Baja Designs’ trademarked High Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.




This bar is equipped with BMT – Battery Management Technology

-Elimination Of Flickering at Low Voltage

-Added Protection to Vehicle Wiring and Systems

-Protection from Dangerous Current Spikes

The OnX6+ LED Light Bar is BRIGHTER. BOLDER. BETTER.



Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color

Specifications:
Lumens: 39,910
Wattage/Amps: 346W / 28.2A
Dimensions: 50" x 4.29" x 2.69"
Weight: 11.45 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)



Includes:

  • OnX6+ Arc 50” LED Light Bar
  • Mounting Brackets

Please note that this light does NOT include a harness and the applicable harness to this light is 640119


Patterns:

Driving/Combo: Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Driving:  BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2) (Also available in amber)

High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Racer Edition Spot:  A 4° beam focus for illumination WAY down the trail or road.  The Racer Edition Spot is for speeds of 110+ MPH or if you need to see a mile+ away. This is the latest version for our Team Enlightened racers and is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 5+)

2 Black Powder Coated Light Brackets that fit factory holes (no drilling req.)
Caliraised Off-Road California Proposition 65 Alert WARNING: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/
Ignite the night with the Cali Raised LED 32” LED Light Bar Lower Bumper Combo. Our mounting system is CAD designed, CNC cut and bent to perfection providing a seamless fit. Our brackets are designed to be stealthy but strong keeping your LED light bar vibration free while still providing tons of light on the road and trail. Combine all these great features with our life time warranty on all vehicle mounting systems so you can drive into the darkness and ignite the night. Features Easy installation, watch our installation videos for a step by step guide Powder coated with a tuff black semi-gloss mini texture Works with any dual or single row LED that is 32” mounting width Order with the Cali Raised LED 32” Led Light Bar for the best performance and price Mounting systems engineered and manufactured in the USA Free shipping in the lower 48 Manufacturer Part # 31250891505706
